How is Prepainted Aluminum Coil Manufactured?

Prepainted aluminum coil, also known as coil-coated aluminum, is widely used in modern construction, transportation, and industrial sectors. Its quality, durability, and aesthetics are determined by a highly controlled manufacturing process. Hengze Steel, as a leading prepainted aluminum coil supplier, adopts advanced coil coating technology to ensure consistent performance and long service life for global customers.

1. Introduction: What Is Prepainted Aluminum Coil
1. Introduction: What Is Prepainted Aluminum Coil

2. Advantages & Applications of Prepainted Aluminum Coil
2. Advantages & Applications of Prepainted Aluminum Coil

3. Materials and Coating Systems
3. Materials and Coating Systems

4. Manufacturing Process (Step-by-Step)
4. Manufacturing Process (Step-by-Step)

5. Process Control & Coil Coating Line Equipment
5. Process Control & Coil Coating Line Equipment

6. Prepainted vs. Post-painted Aluminum
6. Prepainted vs. Post-painted Aluminum

7. Common Defects & Troubleshooting
7. Common Defects & Troubleshooting

8. Conclusion & Future Outlook
8. Conclusion & Future Outlook

1. Introduction: What Is Prepainted Aluminum Coil

Prepainted aluminum coil is aluminum strip that undergoes a continuous coil coating process before being cut or formed. The coil is unrolled, surface treated, coated with primer, finished with a topcoat, cured in high-temperature ovens, and recoiled into a finished product.

Unlike post-painting (painting after shaping), coil coating ensures better consistency, durability, and cost efficiency. Hengze Steel offers high-quality prepainted aluminum coil with customizable colors, thicknesses, and coatings to meet diverse industry needs.

2. Advantages & Applications of Prepainted Aluminum Coil

2.1 Advantages

Uniform Coating Quality – Continuous coil coating ensures a smooth, defect-free surface.
Cost & Efficiency – Automated coil coating lines reduce waste and improve production speed.
Environmental Benefits – VOCs are efficiently collected, meeting strict environmental standards.
Flexibility in Processing – Coils can be cut, bent, or stamped without damaging coatings.
Durability – PVDF and polyester coatings provide excellent corrosion resistance and UV stability.

2.2 Applications

Construction: roofing, wall cladding, curtain walls, ceilings, decorative panels
Appliances: refrigerator panels, washing machines, HVAC covers
Transportation: vehicle body panels, trailers, ship interiors
Signage: billboards, advertising boards, display panels
Energy: solar panel back sheets, lightweight structural parts

As one of the trusted prepainted aluminum coil manufacturers in China, Hengze Steel provides materials widely used across these industries.

3. Materials and Coating Systems

3.1 Advantages

Common alloys include 1000, 3000, 5000, and 6000 series, in tempers such as O, H14, and H24. Thickness and coil dimensions can be tailored to customer requirements.

3.2 Coating Systems

Primer Coat – Enhances adhesion and corrosion resistance.
Topcoat / Finish Coat – Polyester (PE), PVDF (fluorocarbon), polyurethane, or epoxy depending on performance needs.
Back Coat – Thin protective coating for the reverse side.
Optional Film Lamination – Protective or decorative film for premium finishes.

Typical coating thickness:

Primer: 5–10 μm
Topcoat: 15–30 μm

At Hengze Steel, we use advanced coating formulations to achieve excellent durability and color retention in demanding environments.

4. Manufacturing Process (Step-by-Step)

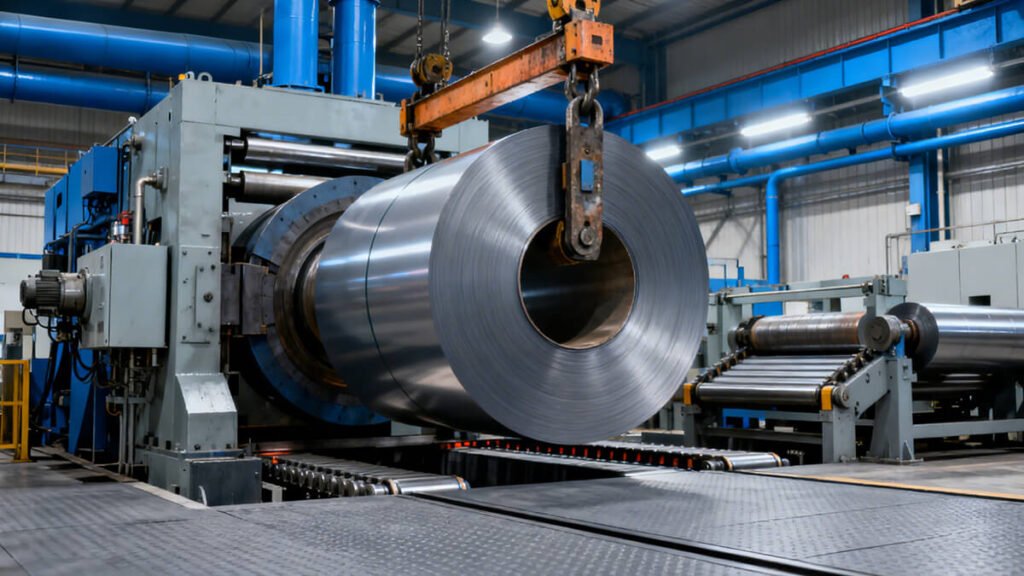

4.1 Raw Coil Input & Uncoiling

Aluminum coils are loaded onto an uncoiler, fed into the line, and stabilized with accumulators for continuous operation.

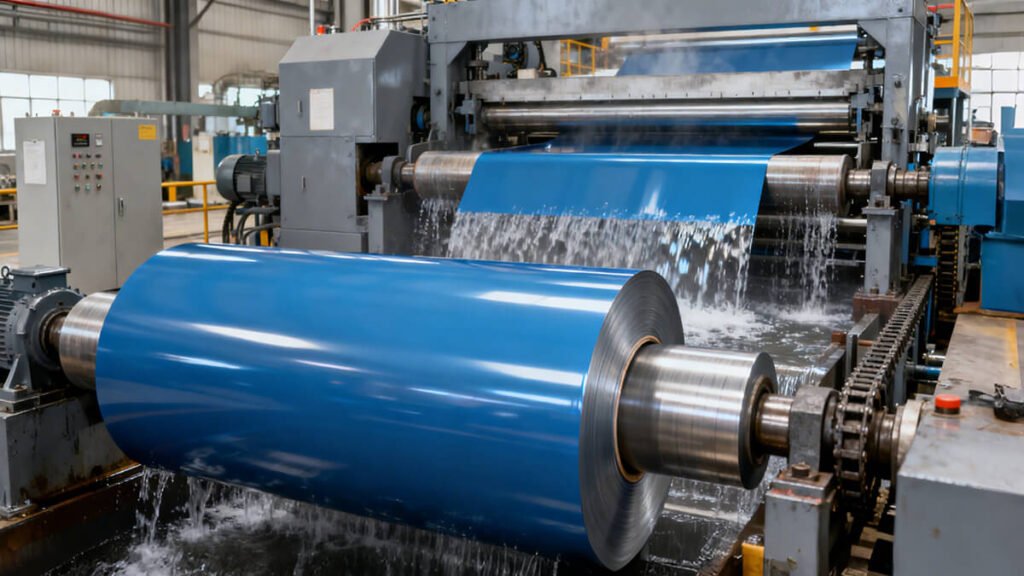

4.2 Surface Cleaning & Pretreatment

Degreasing: Removes oil and contaminants.
Water Rinsing: Prevents chemical residues.
Conversion Coating: Forms a passivation layer (chromate-free options available).
Drying: Ensures a stable, clean surface for coating.

Proper pretreatment is critical for adhesion and corrosion resistance.

4.3 Primer Coating

The coil passes through a primer roller coater, applying a controlled primer layer that improves durability.

4.4 Top Coating / Finish Layer

A finish coat is applied with another roller coater. High-performance systems like PVDF coatings are often used for architectural projects.

4.5 Curing, Baking & Cooling

The coated coil passes through high-temperature ovens where coatings cure and crosslink, ensuring chemical resistance and adhesion. After cooling, the coil is ready for inspection.

4.6 Quality Inspection & Recoiling

Final inspection includes:

Coating thickness test
Adhesion and bend tests
Surface defect checks
Color consistency evaluation

Qualified coils are then recoiled, packaged, and shipped. Hengze Steel applies strict quality control systems to guarantee consistent results for every batch.

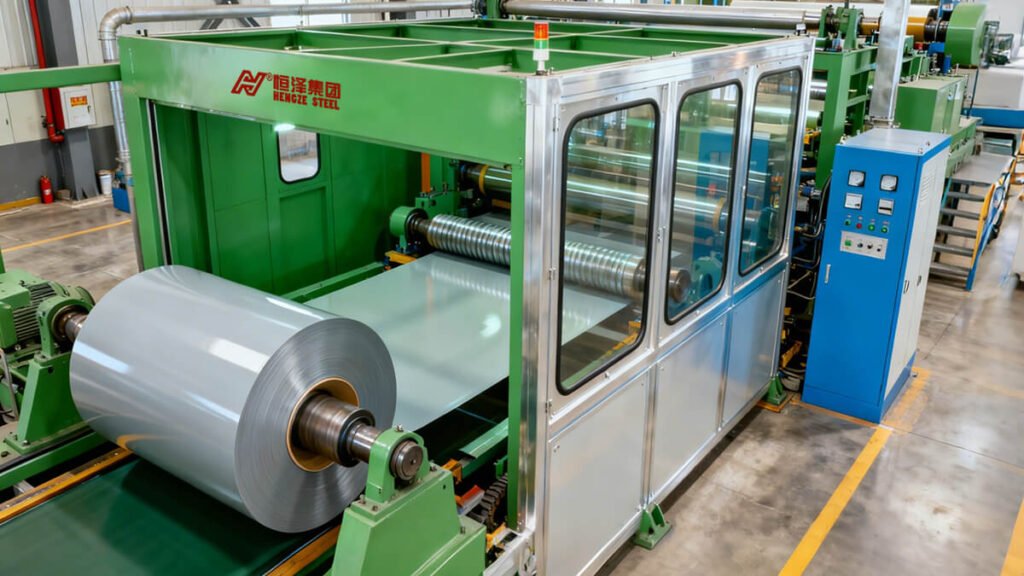

5. Process Control & Coil Coating Line Equipment

Modern coil coating lines operate at speeds of up to hundreds of meters per minute. Key features:

Accurate tension control
Automated roller coaters
High-efficiency curing ovens
VOC and heat recovery systems

Hengze Steel’s state-of-the-art coil coating lines integrate automation and sustainability, ensuring both efficiency and environmental compliance.

6. Prepainted vs. Post-painted Aluminum

Feature	Prepainted (Coil Coating)	Post-painted (Spray/Powder)
Coating Consistency	Uniform on flat coil	Uneven on shaped parts
Efficiency	High-speed continuous	Slow, batch-based
Adhesion	Stronger, controlled	May vary after forming
Cost Control	Lower waste, higher yield	Higher labor & material costs
Environmental Impact	Better VOC capture	Higher emissions

Conclusion: Prepainted aluminum coil offers superior performance and cost efficiency.

7. Common Defects & Troubleshooting

Blistering or Pinholes – Caused by poor pretreatment → improve cleaning and drying.
Poor Adhesion – Incorrect primer or improper curing → adjust coating process.
Scratches & Wrinkles – From tension issues → calibrate line equipment.
Color Variations – Inconsistent coating thickness → optimize roller coater settings.

Hengze Steel’s in-house testing ensures minimal defects and reliable performance.

8. Conclusion & Future Outlook

The manufacturing process of prepainted aluminum coil involves precision at every stage—from substrate preparation to coating, curing, and inspection. With advanced coil coating lines, manufacturers like Hengze Steel deliver premium products trusted worldwide in construction, appliances, transportation, and renewable energy.

Future developments will include:

Eco-friendly conversion coatings (chromate-free systems)
Faster curing technologies with lower energy consumption
Smart production monitoring (Industry 4.0 integration)
Functional coatings such as anti-fingerprint, self-cleaning, and thermal insulation

By choosing Hengze Steel as your prepainted aluminum coil supplier, you gain access to reliable quality, technical expertise, and competitive solutions tailored to your business needs.
