What Are the Main Paint Types for Pre-Painted Aluminum Coils?
This technical guide provides a comprehensive overview of the main paint systems used for pre-painted aluminum coils, including Polyester (PE), Silicone-Modified Polyester (SMP), and Fluoropolymer (PVDF/FEVE) coatings. Each system offers distinct advantages in terms of weather resistance, color stability, adhesion, and cost performance. Engineers, fabricators, and buyers can use this guide to choose the optimal coating based on environmental exposure, project requirements, and lifecycle value.
With advanced coil coating technology and strict quality control, Hengze Steel delivers durable and aesthetically consistent pre-painted aluminum coils tailored for both industrial and architectural applications.
Table of Contents
- 1. Introduction: Why Paint Type Matters for Pre-Painted Aluminum Coils1. Introduction: Why Paint Type Matters for Pre-Painted Aluminum Coils
- 2. Overview of Paint Systems Used on Aluminum Coils2. Overview of Paint Systems Used on Aluminum Coils
- 3. Technical Performance Comparison of Paint Systems3. Technical Performance Comparison of Paint Systems
- 4. How to Choose the Right Paint Type: Environmental & Application Factors4. How to Choose the Right Paint Type: Environmental & Application Factors
- 5. Pre-Treatment & Coating Structure Considerations5. Pre-Treatment & Coating Structure Considerations
- 6. Specification & Procurement Checklist6. Specification & Procurement Checklist
- 7. Common Pitfalls and FAQs7. Common Pitfalls and FAQs
- 8. Conclusion: Best Practice Summary8. Conclusion: Best Practice Summary

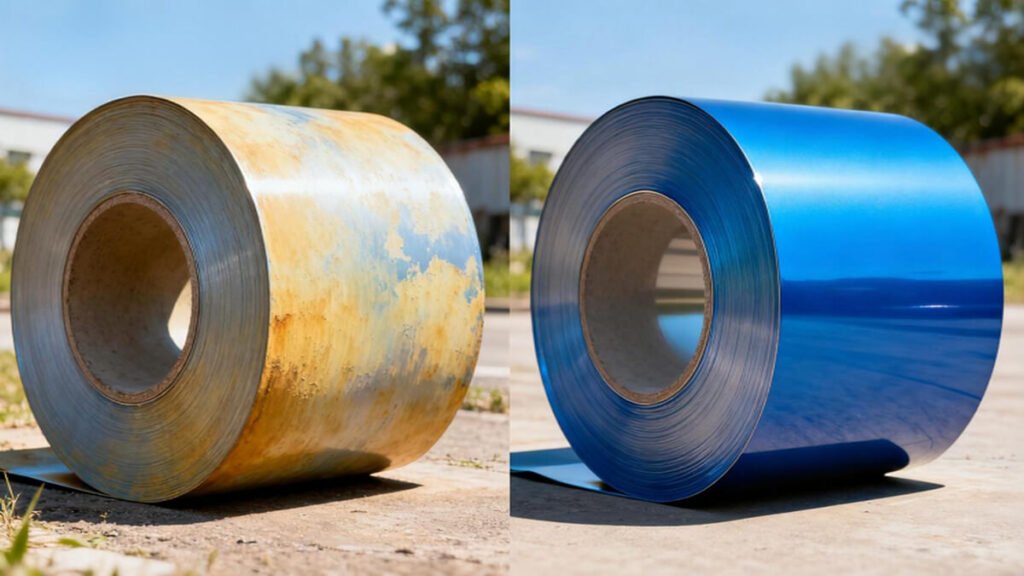

1. Introduction: Why Paint Type Matters for Pre-Painted Aluminum Coils
Pre-painted aluminum coils (PPAL) are widely used in modern architecture, signage, cladding, and decorative panels due to their lightweight, corrosion resistance, and aesthetic versatility.
The paint system applied during coil coating is not merely decorative — it defines the product’s UV resistance, color stability, adhesion, corrosion protection, and long-term performance. A well-specified coating can extend the lifespan of an aluminum façade by decades while reducing maintenance costs.
As a professional pre-painted coil manufacturer, Hengze Steel provides PE, SMP, and PVDF-coated aluminum coils that meet international standards for durability, color consistency, and forming performance — suitable for both industrial and architectural applications.

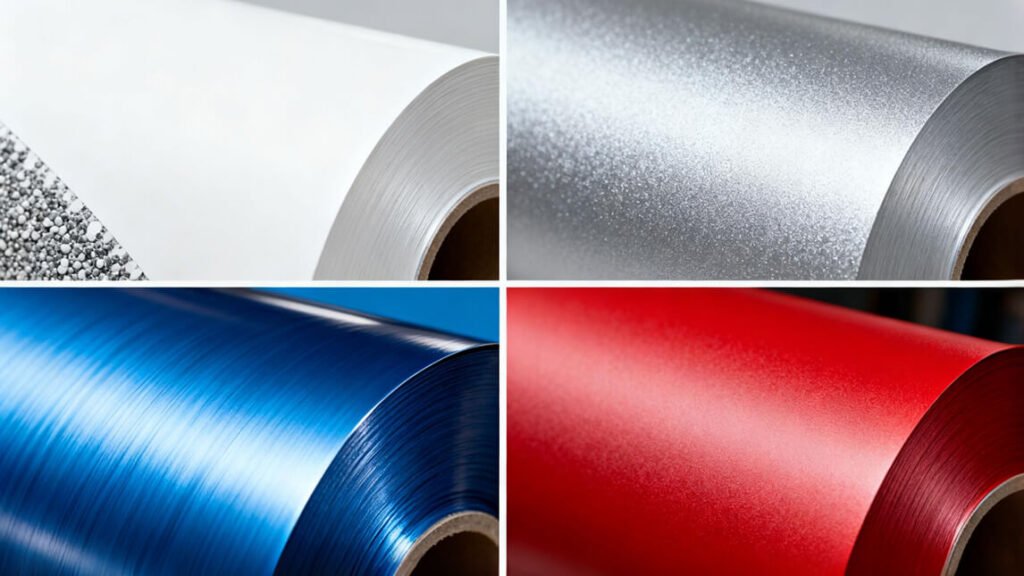

2. Overview of Paint Systems Used on Aluminum Coils
2.1 Polyester (PE) Coatings
PE coatings are among the most economical systems, offering a smooth, glossy appearance and good formability.
Typical dry film thickness: 15–20 µm (topcoat)
Best for: interior panels, ceilings, or lightly exposed exterior areas
Advantages: cost-effective, wide color range
Limitations: limited UV and chalk resistance (approx. 10–15 years service life outdoors)
Hengze Steel offers high-quality PE-coated aluminum coils for cost-sensitive projects that still require good visual appeal and basic weather protection.
2.2 Silicone-Modified Polyester (SMP) Coatings
SMP coatings incorporate silicone resins to enhance gloss retention and chalk resistance.
Typical DFT: 20–25 µm
Applications: warehouses, agricultural or light industrial buildings
Performance: stronger adhesion and abrasion resistance than PE; moderate color retention (15–25 years lifespan)
Notes: suitable balance between cost and outdoor durability.
2.3 Fluoropolymer Coatings – PVDF / FEVE
PVDF and FEVE coatings are the premium choice for architectural aluminum applications.
Typical DFT: 25–30 µm or higher
Composition: ~70% PVDF resin (per AAMA 2605 standard)
Advantages: exceptional weatherability, color stability, and chalk resistance — ideal for coastal, high-UV, or urban façades
Applications: curtain walls, roofing, landmark buildings
Service life: 25–40+ years
Hengze Steel’s PVDF-coated aluminum coils deliver superior resistance to fading and corrosion, making them an excellent solution for long-lasting exterior architectural projects.
2.4 Other Specialty Systems (HDP, Acrylic, Powder, Film Laminates)
HDP (High-Durability Polyester): enhanced PE variant, good for medium-term outdoor exposure.
Acrylic/Epoxy Primers: used as intermediate or back-coat layers to improve adhesion.
Powder Coatings / Film Laminates: applied in appliances or decorative panels for textured or metallic finishes.
3. Technical Performance Comparison of Paint Systems
| Paint Type | Typical DFT | Color/Fade Stability | Adhesion/Formability | Typical Use Case |
|---|---|---|---|---|
| PE | 15–20 µm | Moderate (10–15 yrs) | Good for mild forming | Interior or sheltered exterior |
| SMP | 20–25 µm | Good (15–25 yrs) | Strong adhesion, good scratch resistance | Industrial/outdoor |
| PVDF/FEVE | 25–30+ µm | Excellent (25–40+ yrs) | Excellent adhesion and forming performance | Façade, roofing, high-exposure zones |
Key Technical Factors:
Color retention: PVDF > SMP > PE
Chalk resistance: PVDF systems excel due to strong C–F molecular bonds.
Formability: essential for roll-forming or bending aluminum sheets.
Corrosion protection: depends on pretreatment and substrate alloy quality.
4. How to Choose the Right Paint Type: Environmental & Application Factors
When selecting a paint system for pre-painted aluminum coils, engineers should assess:
Exposure conditions:
Coastal, industrial, or high-UV → PVDF/FEVE
Moderate → SMP or HDP
Indoor or sheltered → PE
Aesthetic goals:
Vivid or metallic finishes → PVDF
Standard matte/gloss → SMP or PE
Fabrication demands:
For complex bending or punching → select coatings certified for high adhesion.
Budget considerations:
PE offers the lowest upfront cost.
PVDF provides superior lifecycle economy due to minimal maintenance.
Hengze Steel’s technical team helps clients match the coating system to the exact environment, ensuring the best balance of durability, cost-efficiency, and appearance.
5. Pre-Treatment & Coating Structure Considerations
A high-quality pre-painted aluminum coil depends on the complete coating system, including:
Substrate alloy: commonly 3000 or 5000 series aluminum.
Surface cleaning and conversion coating (chromate or non-chromate).
Primer layer: epoxy or acrylic-based for adhesion and corrosion control.
Topcoat layer: PE, SMP, or PVDF.
Back coat: epoxy or polyester for rear-side protection.
Curing: typically 210–250 °C in continuous coil coating lines.
Common structure:
“2/1” → two coats top, one coat back
“2/2” → two coats both sides
Hengze Steel employs advanced coil coating lines with precise curing and film thickness control to ensure uniform quality and strong interlayer adhesion.
6. Specification & Procurement Checklist
When specifying or purchasing pre-painted aluminum coils, confirm:
Paint type & resin content (e.g., PVDF 70%)
DFT for primer/topcoat (≥25 µm for PVDF)
Adhesion & impact resistance certifications
Color, gloss, and RAL code
Substrate alloy & temper (AA3003-H14 or equivalent)
Warranty for color fade/chalking
Pretreatment process type
Test data (UV, salt spray, humidity)
Packaging and handling requirements
7. Common Pitfalls and FAQs
Pitfall 1: Selecting PE for outdoor façades → early fading and loss of gloss.
Pitfall 2: Ignoring forming requirements → cracking or delamination.
FAQ Example:
Q: Can SMP replace PVDF if budget is tight?
A: Yes, in moderate environments. However, expect a shorter warranty and reduced long-term color stability.
8. Conclusion: Best Practice Summary
Choosing the right paint type for pre-painted aluminum coils requires balancing environmental exposure, desired aesthetics, fabrication needs, and total cost of ownership.
For premium exterior durability → choose PVDF/FEVE.
For balanced cost and performance → SMP or HDP are ideal.
For indoor or short-term projects → PE remains a cost-effective solution.
Partnering with an experienced supplier like Hengze Steel ensures not only high-quality coatings but also professional guidance in selecting the most appropriate paint system for your project.
