Prepainted Galvalume Steel Coil (PPGL)
High-Performance PPGL Coils with Custom Colors and Long-Lasting Protection from Hengze Steel

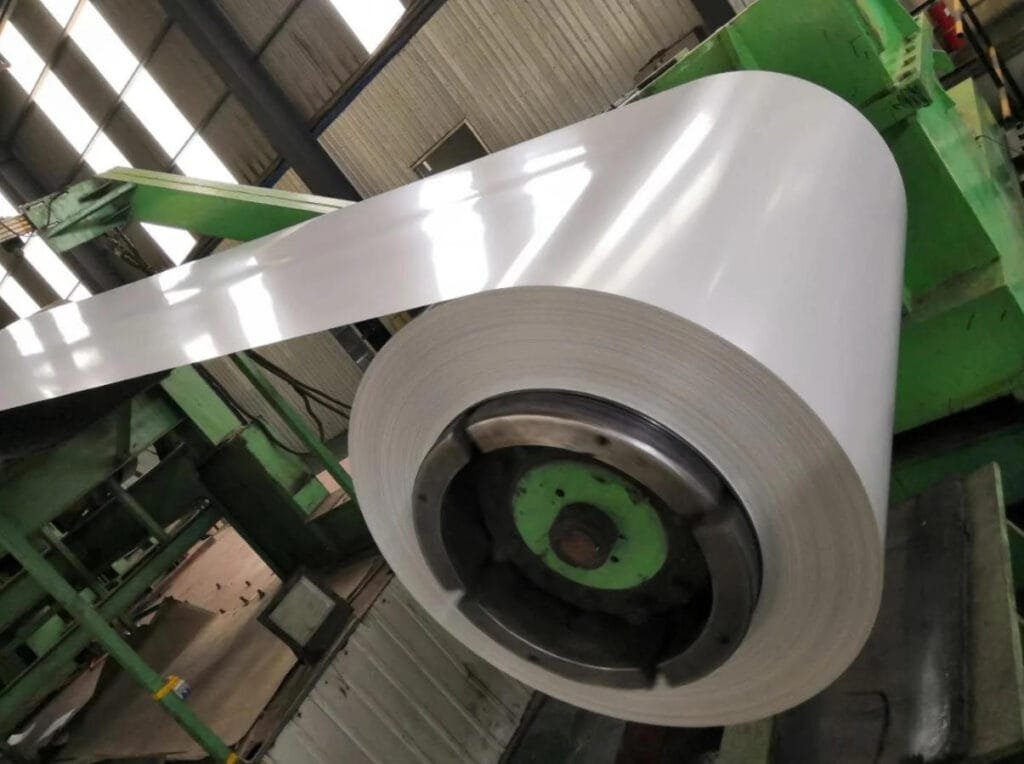

Prepainted Galvalume Steel Coil (PPGL) Manufacturer
Hengze Steel is a trusted manufacturer of high-performance Prepainted Galvalume Steel Coil (PPGL), engineered for superior corrosion resistance and long-lasting color retention. Our PPGL coils are widely used in roofing, wall cladding, and other demanding construction applications.
PPGL combines the durability of galvalume substrate (55% aluminum, 43.4% zinc, 1.6% silicon) with a high-quality paint finish. This advanced coating system provides enhanced protection against harsh weather, UV exposure, and chemical corrosion, significantly outperforming standard galvanized steel.
We use premium-grade materials like DX51D+AZ and Q195 for base metals, with PE (polyester) coating being the most cost-effective and commonly used option, offering up to 10 years of service life. For customers requiring higher durability, we also offer SMP and PVDF coatings.
At Hengze, we support custom surface designs such as wood grain, matte finishes, and custom RAL colors, allowing your projects to combine functionality with visual appeal.
Our PPGL coils are tested according to international quality standards, and we provide SGS-certified reports and support third-party factory inspections to ensure product consistency and performance.
| Parameter | Details |
|---|---|
| Base Material | High-strength Galvalume Steel: DX51D+AZ, S220GD~S550GD grades |
| Thickness Range | 0.13 – 0.8 mm |
| Available Width | 600 – 1250 mm |
| Paint Layers | Primer (PU/Epoxy): 5μmTopcoat: 15–30μmBack Primer: 2μmBack Coat: 5–20μm |
| Coating Types | PE (Polyester), SMP, HDP, PVDF – suitable for harsh environments |
| Inner Coil Diameter | 508 mm / 610 mm |
| Coil Weight | 3 – 8 tons, customizable based on order volume |
PPGL Application Types

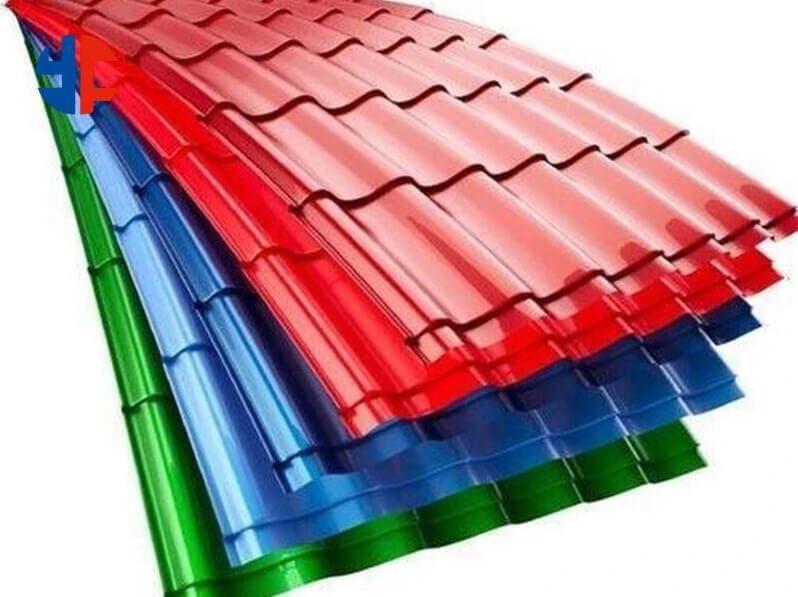

Building Industry PPGL
Designed for roofing, wall panels, and color-coated steel sheets, offering high durability and aesthetic appeal for modern buildings and architectural projects.
Home Appliance Industry PPGL
Provides strong corrosion resistance and UV protection, widely used for refrigerators, washing machines, air conditioners, and other household appliance..
Automotive Industry PPGL
Combines corrosion, UV, and heat resistance, making it suitable for automotive body panels, interior components, and exterior parts requiring long-term performance.
Industrial Application PPGL
Delivers reliable corrosion protection for industrial machinery and equipment, ideal for housings, enclosures, and components used in demanding environments.
Standard & Custom Color Matching
We customize colors based on your samples to meet exact requirements. Below are common options that can be tailored to your needs.
RAL1013>>
RAL1015>>
RAL7035>>
RAL7021>>
RAL9002>>
RAL9003>>
RAL9010>>
RAL9006>>
RAL9011>>
RAL9017>>
RAL7011>>
RAL8004>>
RAL8014>>
RAL8017>>
RAL2002>>
RAL2005>>
RAL3005>>
RAL3013>>
RAL5010>>
RAL5012>>
RAL5015>>
RAL5017>>
RAL6005>>
Application Fields
PPGI is widely applied in the following sectors:
- Construction: Roofing sheets, wall cladding, garage doors, sandwich panels
- Industrial: Machine enclosures, warehouses, cold storage facilities
- Residential & Commercial: Home appliances, lighting fixtures, ceiling tiles
- Architectural: Prefabricated buildings, decorative facades, modular housing

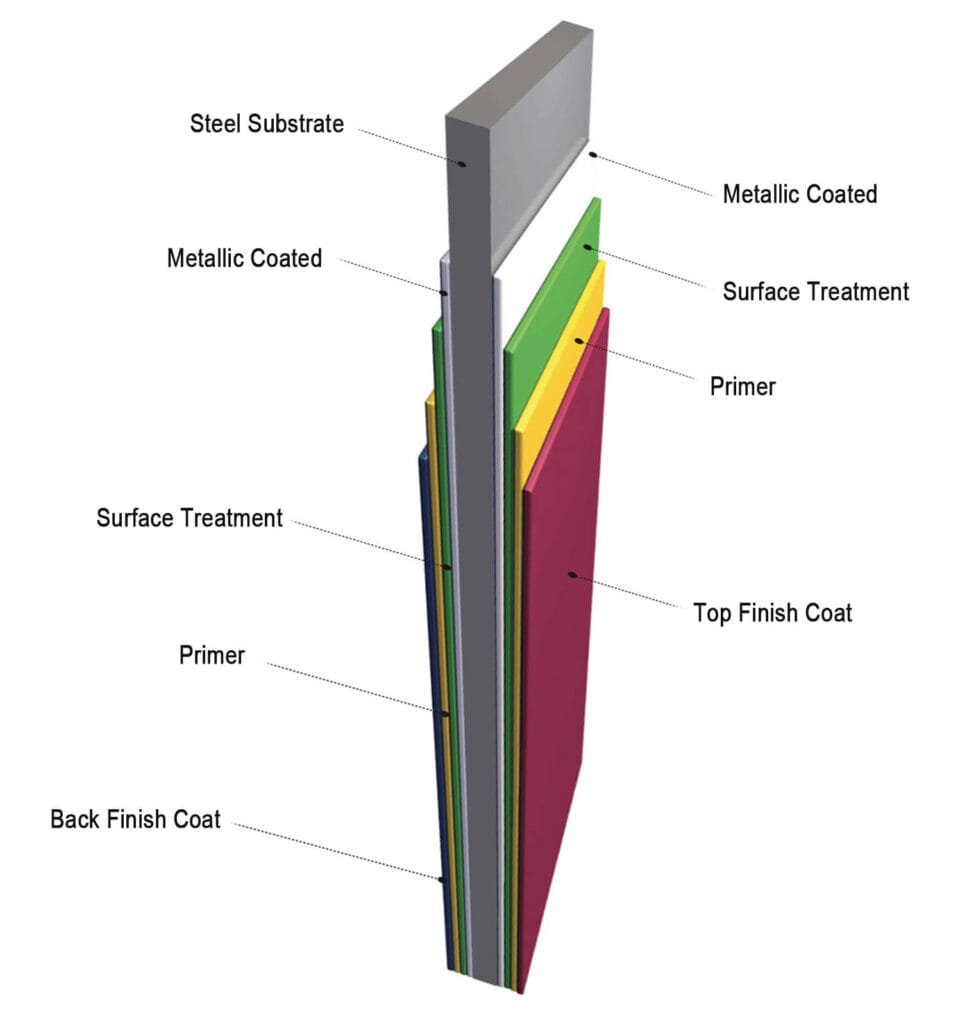

PPGL Coil Structure by HengZe Steel
| Layer | Description |
|---|---|
| Cold-Rolled Steel Substrate | High-strength base metal with excellent formability and dimensional accuracy. |
| Chromate Treatment (1st) | Cleans and passivates the steel surface to improve corrosion resistance. |
| Galvalume Coating | Aluminum-zinc alloy layer (55% Al, 43.5% Zn) for superior corrosion protection. |
| Chromate Treatment (2nd) | Further enhances surface stability for better paint adhesion. |
| Primer Coating | PU or epoxy primer improves paint bonding and prevents peeling during forming. |
| Topcoat Finish | Durable PE, SMP, or PVDF coating provides long-lasting color and UV protection. |
Why Choose HengZe Steel PPGL Steel Coil?
HengZe Steel offers high-quality PPGL coils made from premium galvalume substrates, ensuring excellent corrosion resistance and long service life.
Our advanced coatings include:
Silicone-Modified Polyester (SMP): up to 10 years warranty
Polyvinylidene Fluoride (PVDF): up to 25 years warranty
Super High Durable Polyester (SHDP): up to 40 years warranty for harsh climates
We provide customizable colors and finishes, strict quality control with SGS certification, and factory-direct pricing.
Choose HengZe Steel for durable, reliable, and cost-effective PPGL solutions backed by expert support.
Frequently Asked Questions about PPGL
Hengze’s prepainted galvalume steel coils offer exceptional corrosion resistance, durability, and aesthetic appeal, making them ideal for coastal areas with high salt exposure, harsh weather conditions including heavy rain and snow, as well as industrial environments requiring long-lasting performance.
Our PPGL coils use a premium aluminum-zinc alloy coating that provides superior corrosion protection and extended lifespan compared to traditional galvanized steel coils with pure zinc coating. This makes Hengze PPGL the preferred choice for demanding applications where enhanced durability is critical.
Pricing depends on several key factors including the base material grade, paint system (PE, SMP, PVDF), thickness, coil width, and order volume. Hengze Steel offers competitive factory-direct pricing, flexible customization, and reliable supply to fit various project budgets and specifications
Hengze Steel integrates advanced production technology, strict quality control, and comprehensive testing including SGS certification, ensuring consistent product quality and timely delivery. While some Indian manufacturers may offer lower prices, Hengze’s focus on reliability, technical support, and global standards makes it a trusted partner for international customers.
HengZe PPGL warranty includes both paint and substrate protection. Warranty duration varies by coating type, geographic location, and proximity to marine environments:
Silicone‑Modified Polyester (SMP): Approx. 10 years
PVDF coatings: Up to 25 years color and adhesion warranty
Super High Durable Polyester (SHDP): Up to 40 years in harsh climates
Get a Quote Today
At Hengze Steel, we specialize in supplying durable, weather-resistant PPGL coils tailored to your needs.
Whether you’re looking for product specifications, a competitive quote, or expert guidance — our team is here to help.
👉 Or email us at sales@hengzesteel.com.
