Prepainted Galvanized Steel Coils (PPGI)
Color-Coated PPGI Steel Coils for Roofing and Decorative Applications β SGS Certified, Full Zinc Coating, and Custom Colors Available
Trusted Manufacturer of Prepainted Galvanized Steel Coil (PPGI) β HengZe Steel
HengZe Steel is a reliable and leading manufacturer of Prepainted Galvanized Steel Coil (PPGI), offering factory-direct pricing and superior quality compared to third-party suppliers. We support factory inspections and provide SGS certified test reports to ensure product authenticity and performance.
Our PPGI coils combine durability, aesthetic appeal, and corrosion resistance by applying high-quality coatings such as Polyester (PE), Silicon Modified Polyester (SMP), and Polyvinylidene Fluoride (PVDF) on galvanized steel substrates. This process not only enhances the steelβs appearance with vibrant and customizable colors but also extends its lifespan across various applications.
| Thickness | 0.13 mm β 2.00 mm |
| Width | 600 mm β 1,500 mm |
| Zinc Coating Weight | 60 β 275 g/mΒ² |
| Paint Systems | Polyester (PE), SMP, Polyvinylidene Fluoride (PVDF) |
| Top Paint Thickness | 10 β 30 ΞΌm |
| Back Paint Thickness | 5 β 25 ΞΌm |
| Standards Supported | ASTM, JIS, EN (available grades: DX51D, DX52D, S280GDβS550GD) |
| Inner Diameter (ID) | 508 mm or 610 mm |
| Coil Weight | 3 β 10 tons per coil |
| Min. Order | 25 Tons Or less than 25 tons is allowed in special situation. |
Special Patterns Available
We customize colors based on your samples to meet exact requirements. Below are common options that can be tailored to your needs.

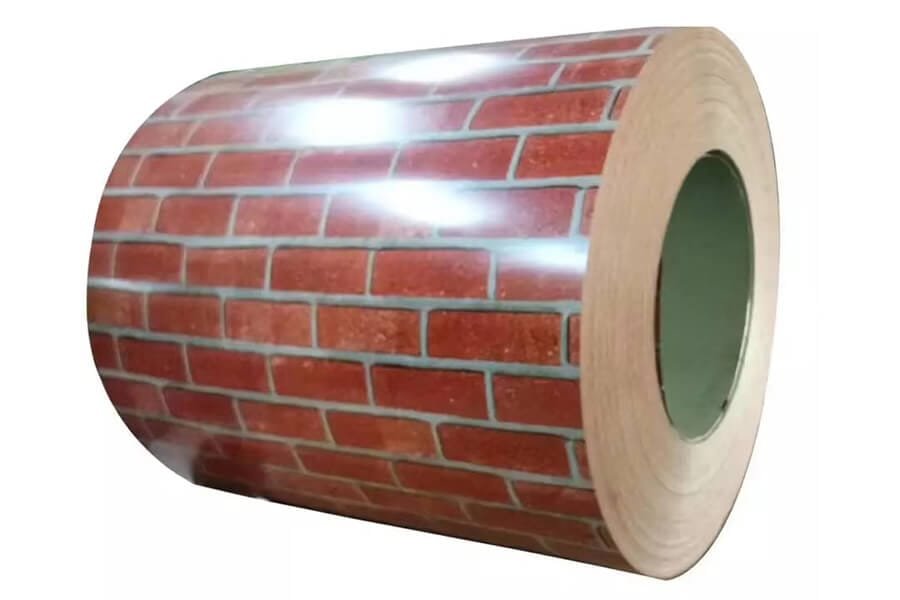

Brick Pattern PPGI
Lightweight and corrosion-resistant alternative to traditional brick, ideal for facades and fencing.

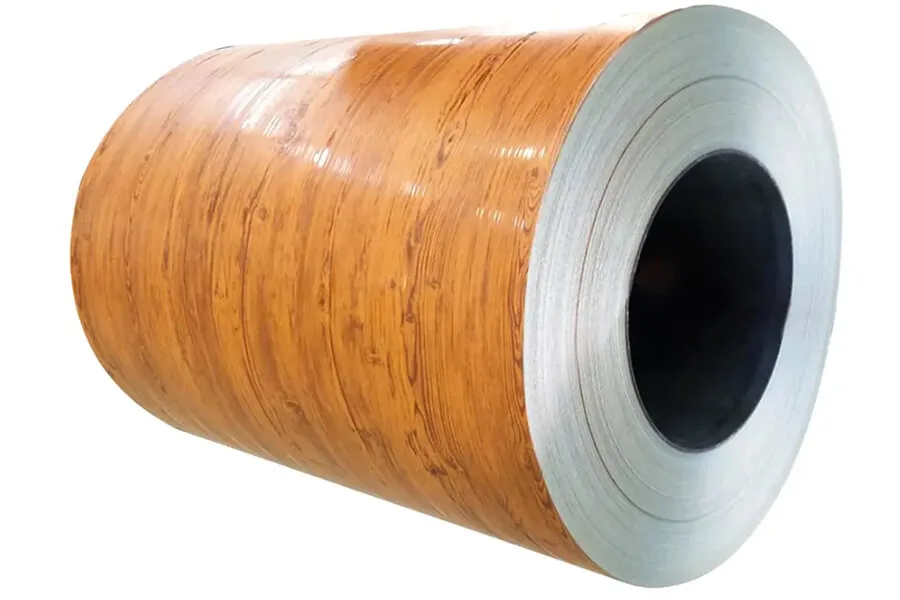

Woodgrain PPGI PPGL
Realistic wood texture providing warmth and style without warping or pests.

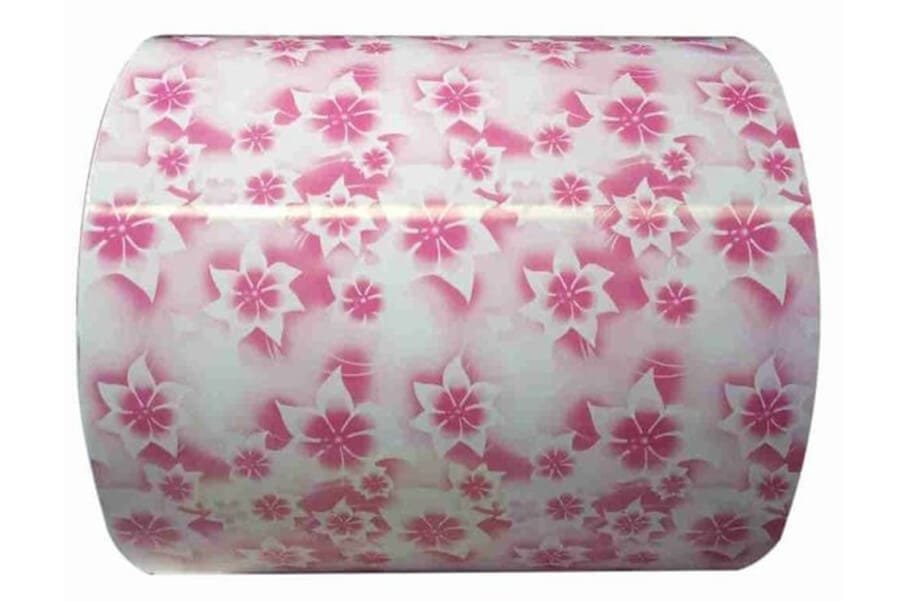

Flower Painted PPGI
Unique decorative finish for interiors, kiosks, and retail spaces with long-lasting color.
Matt Textured Prepainted
Smooth, matte surface with scratch resistance, ideal for modern roofing, cladding, and industrial use.
Standard & Custom Color Matching
We customize colors based on your samples to meet exact requirements. Below are common options that can be tailored to your needs.
RAL1013>>
RAL1015>>
RAL7035>>
RAL7021>>
RAL9002>>
RAL9003>>
RAL9010>>
RAL9006>>
RAL9011>>
RAL9017>>
RAL7011>>
RAL8004>>
RAL8014>>
RAL8017>>
RAL2002>>
RAL2005>>
RAL3005>>
RAL3013>>
RAL5010>>
RAL5012>>
RAL5015>>
RAL5017>>
RAL6005>>
Application Fields
Construction

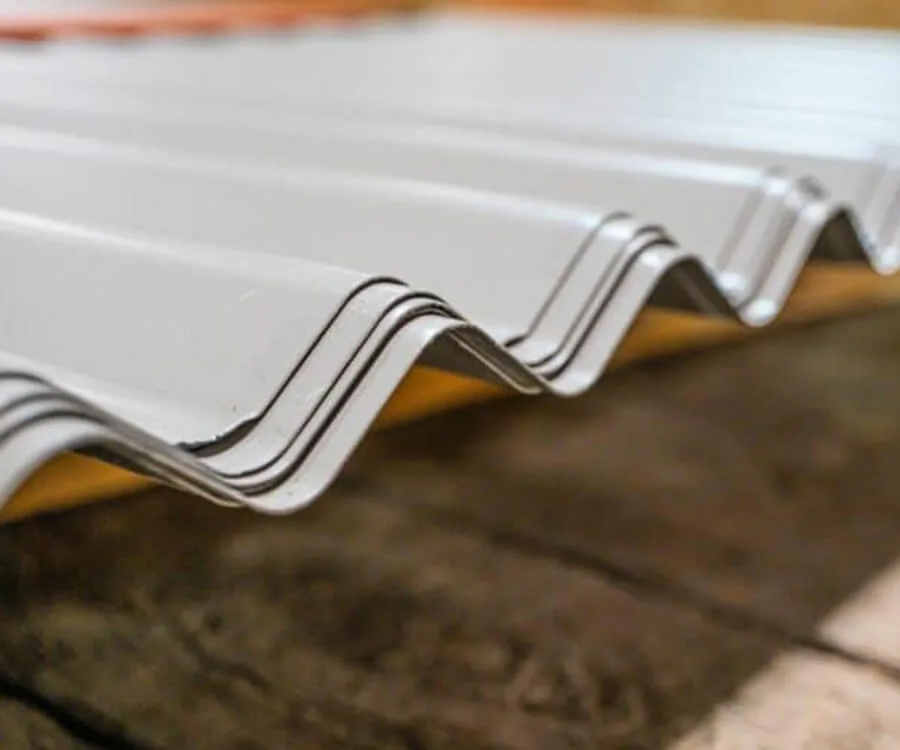

Widely used in roofing sheets, exterior wall cladding, garage door panels, and insulated sandwich panels for durable building envelope solutions.
Industrial
Ideal for machine housings, factory warehouses, cold chain facilities, and structural panels requiring strength and corrosion resistance.
Residential & Commercial
Applied in home appliances, LED lighting cases, suspended ceiling systems, and interior decorative panels for modern design needs.

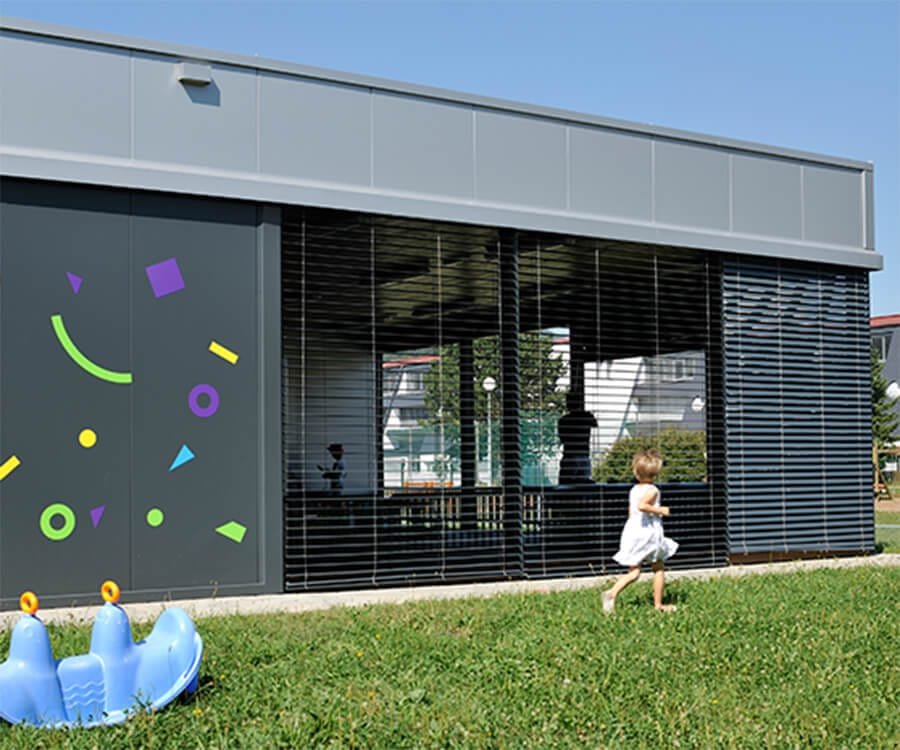

Architectural
Used in prefab buildings, modular housing systems, ventilated facades, and exterior cladding to meet contemporary architectural demands.

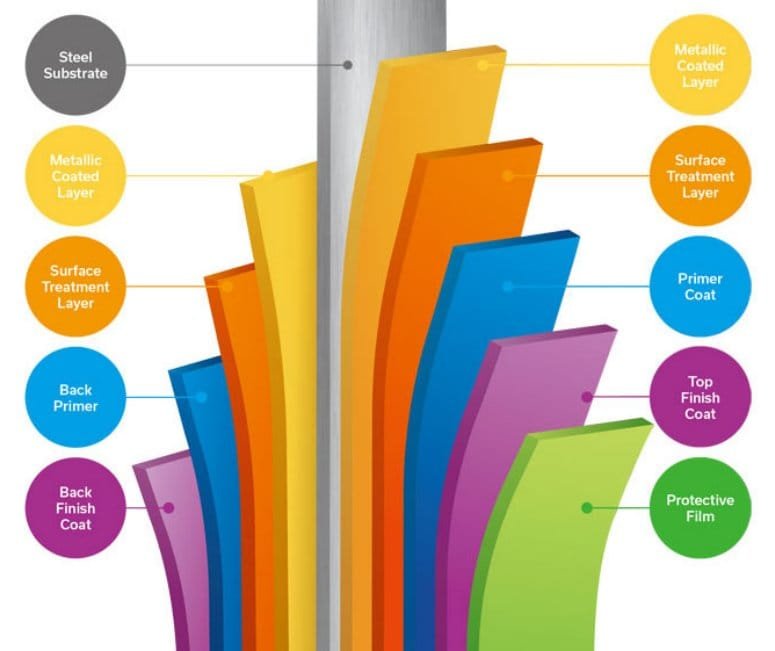

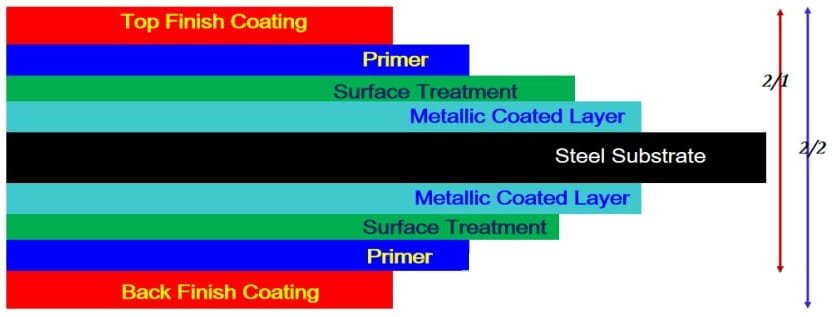

PPGI Coil Structure by HengZe Steel
HengZeβs Prepainted Galvanized Steel Coil (PPGI) is engineered with a multi-layered coating system that enhances corrosion resistance, paint durability, and overall product lifespan.
| Base Metal | High-quality galvanized steel with zinc coating (60β275g/mΒ²) for strong rust protection. |
| Chemical Coating | Improves paint adhesion and adds extra corrosion resistance. |
| Primer Layer | Enhances bonding between substrate and topcoat, protects against moisture and chemicals. |
| Topcoat | Colored surface layer (PE, SMP, PVDF) for UV resistance, color retention, and surface durability. |
| Back Coating | Optional bottom layer for added protection and insulation compatibility. |
Why Choose HengZe Steel PPGI?

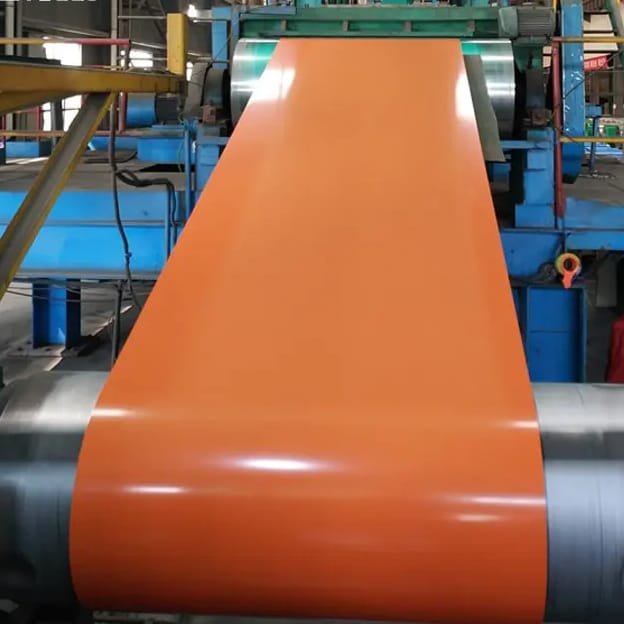

- Advanced Production Lines: Equipped with precision coil coating and pattern printing technology.
- Custom Solutions: Tailored color matching and pattern customization, including wood, brick, floral, and matte finishes.
- Global Compliance: All products meet ASTM, JIS, EN, and ISO standards, with SGS and BV certifications available.
- Stringent Quality Control: Full traceability and factory inspection services offered.
- Fast Delivery & Competitive Pricing: Efficient logistics with stable supply capacity.
Frequently Asked Questions about PPGI
Yes, many of our prepainted galvanized steel coils are available with a removable protective plastic film (typically 30β80β―ΞΌm) applied on the top-coated surface. This film helps protect the paint layer during fabrication, shipping, and installation, minimizing surface scratches or paint loss.
The Harmonized System (HS) code for PPGI coils is generally 721070 when the thickness is under 1.5β―mm and width is over 600β―mm. However, the exact classification can vary by country or application, so we recommend confirming with your local customs authority.
PPGI coil pricing depends on multiple variables, including:
Zinc coating weight (e.g., Z60βZ275 g/mΒ²)
Paint system (Polyester, SMP, PVDF, etc.)
Color and surface finish (e.g., gloss, matte, woodgrain)
Paint thickness (top and back coating)
Coil dimensions and order quantity
For an accurate quotation, please provide detailed specifications and color preferences.
For general applications, HengZe PPGI coils use:
Top coat: 15β30β―ΞΌm
Back coat: 5β15β―ΞΌm
PVDF systems may require higher film thickness (up to 30β―ΞΌm) to meet demanding weathering and UV resistance standards. Proper paint thickness ensures long-lasting color, gloss retention, and corrosion protection.
Service life depends on the coating system and environmental conditions:
PE (Polyester): 5β8 years
SMP (Silicon Modified Polyester): 10β15 years
PVDF (Polyvinylidene Fluoride): 15β25 years
In coastal, industrial, or highly humid regions, we recommend using PPGI with higher zinc coating weight and PVDF paint for enhanced corrosion resistance.
Get a Quote Today
Ready to enhance your project with our premium prepainted galvanized steel coils?
At Hengze Steel, our expert team is here to support you every step of the way.
Whether you need more information, a personalized quote, or a consultation β we’re just a click away.
π Or email us at sales@hengzesteel.com.
Recommended Steel Coil Products
Galvanized Steel Coil (GI)
Zinc-coated steel coil with strong corrosion resistance and durability, commonly used in construction, automotive parts, and household appliances.
Prepainted Galvanized Coils
Color-coated GI coil with excellent rust protection and aesthetic finish, ideal for roofing, siding, home appliances, and light industrial applications.

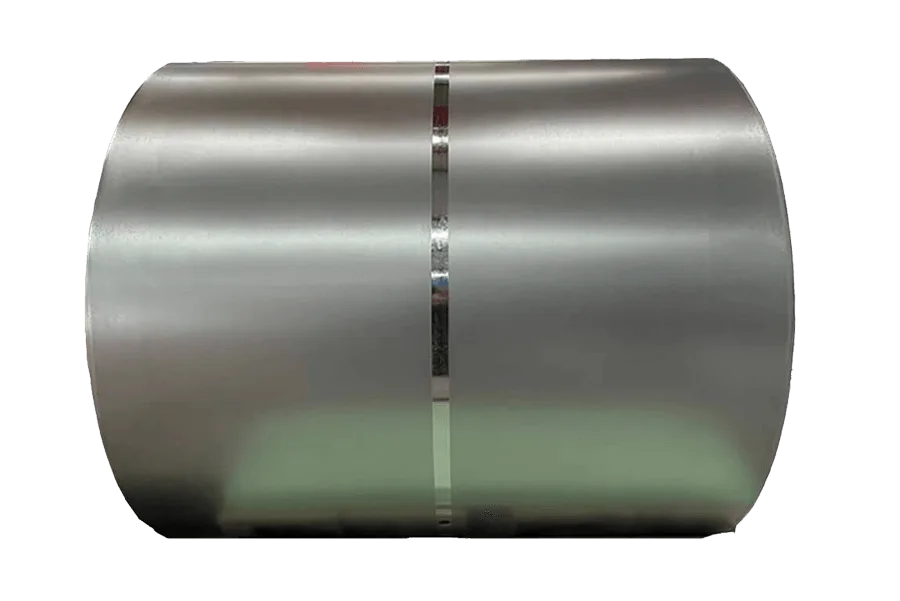

Zn-Al-Mg Coated Steel Coil
