Tinplate Coil (ETP / SPTE)
Premium tin-coated steel coils engineered for food-grade packaging, aerosol cans, and industrial closures — offering excellent corrosion resistance, printability, and global supply capability.
Electrolytic Tinplate Coil (ETP / SPTE) Manufacturer in China – Hengze Steel
At Hengze Steel, we supply top-grade Electrolytic Tinplate Coils (ETP / SPTE) — a precision-engineered material featuring a cold-rolled, low-carbon steel core uniformly coated with high-purity tin through state-of-the-art electroplating technology. Known for its excellent corrosion resistance, superior formability, and outstanding surface appearance, ETP is the preferred choice for food cans, beverage containers, aerosol packaging, and industrial closures.
Key Features：
- Superior Corrosion Resistance: The electrolytic tin layer protects the steel base from moisture, oxygen, and chemical agents, ensuring long-term durability.
- Diverse Surface Finishes: Available in Bright, Stone, Silver, and Matte. Enhanced with passivation and food-grade DOS oiling to support long shelf life and excellent printability.
- Wide Temper Range: Covers T1–T5 and DR7–DR9 to meet various forming and stamping requirements.
- Customizable Tin Coating Weights: From 1.1/1.1 to 8.4/8.4 g/m². Differential and mixed coatings (e.g., 2.8/5.6) are also available.
| Parameter | Details |
|---|---|
| Thickness | 0.12 – 0.60 mm (customizable up to 0.70 mm) |
| Width Range | 300 – 1500 mm (standard: 600 – 1250 mm) |
| Steel Base Grades | MR, SPCC, Q195, S08AL, SPHC |
| Tin Coating Weights | 1.1/1.1 – 8.4/8.4 g/m² (double-sided or differential) |
| Annealing Type | CA (Continuous Annealed) or BA (Batch Annealed) |
| Oil Coating | DOS oil (1–3 g/m²) for corrosion prevention and printing |
| Surface Treatment | Passivated, Oiled / Unoiled |
| Coil ID / OD | ID: 508 mm / OD: 1000–1300 mm |
| Standards | JIS G3303, ASTM A623M, EN 10202, GB/T 2520-2008 |
Types of Tinplate

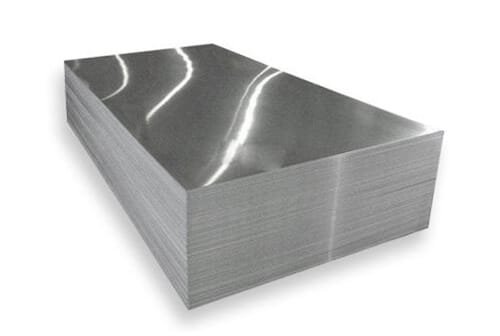

Hot-Dip Tinplate Sheet
Steel sheet coated with molten tin by hot-dip process, offering strong adhesion, reliable corrosion resistance, and excellent formability for packaging and industrial applications.
Electrolytic Tinplate Sheet
Steel sheet with electrolytically applied tin coating for uniform thickness, smooth surface, and superior performance in food cans, caps, and precision metal packaging.

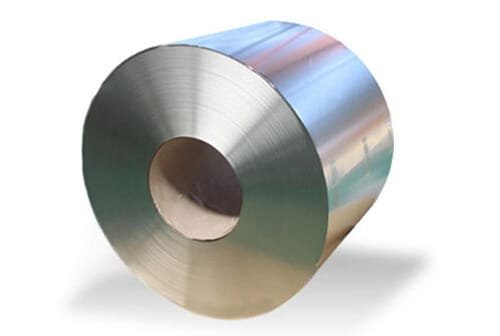

Hot-Dip Tinplate Coil
Coil form of hot-dip tinplate with durable tin coating, providing consistent quality, excellent weldability, and corrosion protection for large-scale manufacturing.

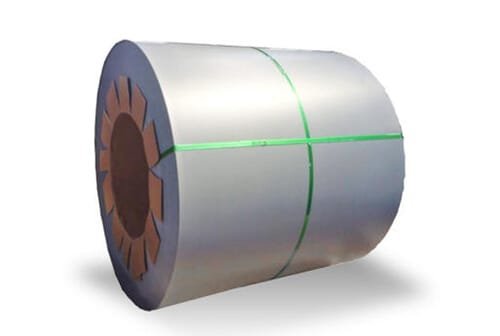

Electrolytic Tinplate Coil
Coil form of electrolytic tinplate featuring precise coating control, bright finish, and high processability, widely used in canning, closures, and decorative metal products.
Application Fields

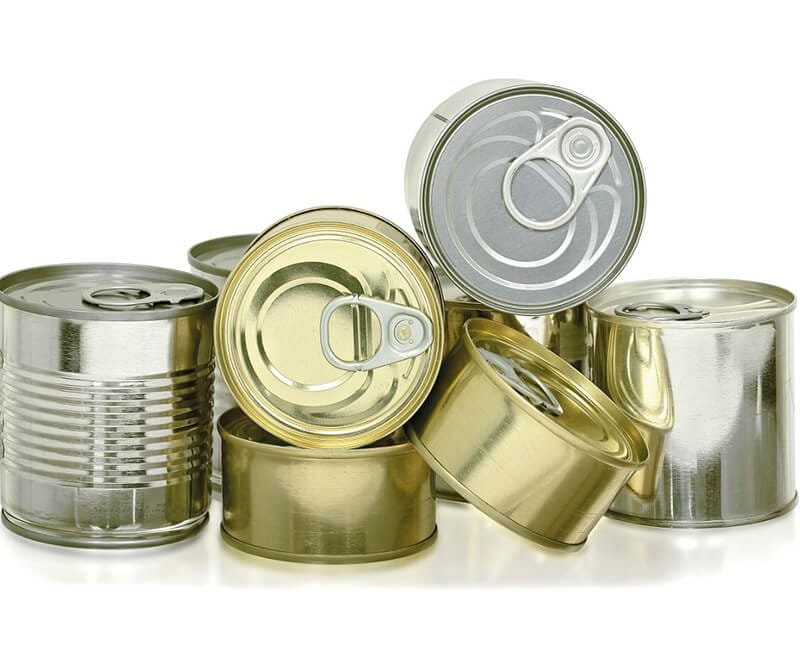

Food Packaging
Used for tuna cans, tomato paste cans, and milk powder containers.

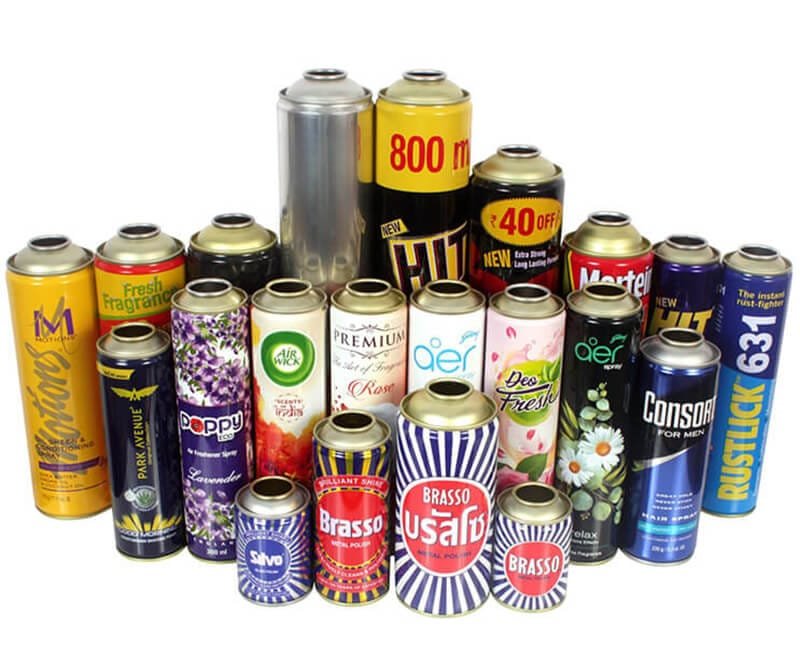

Chemical & Industrial
Ideal for paint pails, aerosol cans, and lubricant containers.

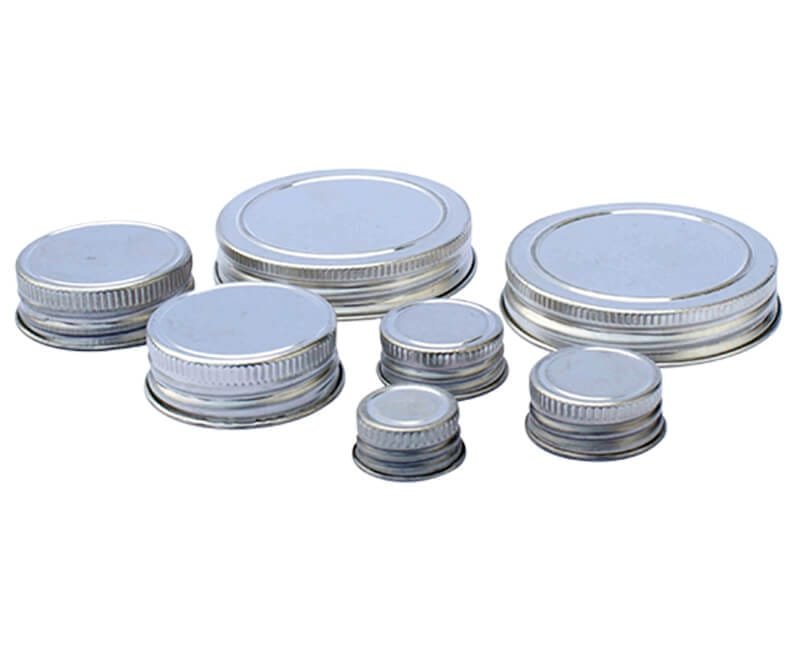

Closures & Lids
Applied in easy-open ends, twist-off caps, and crown caps.

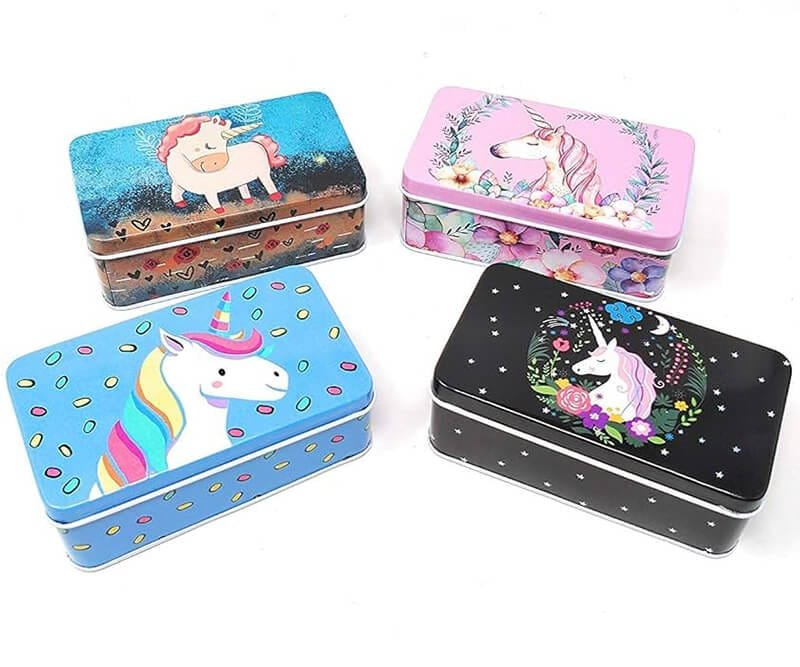

Decorative Printing
Suitable for lithographic printing and various lacquering uses.
Why Choose Hengze’s Tinplate Coil (ETP / SPTE)?
Hengze offers high-quality Tinplate Coils (ETP / SPTE) with consistent performance, excellent surface finish, and reliable corrosion resistance. Our coils are manufactured using prime cold-rolled steel and electrolytic tin coating, ensuring durability and formability for a wide range of applications.
We provide:
Strict Quality Control: Full compliance with JIS, ASTM, and DIN standards
Custom Specifications: Various tin coating weights, tempers, and finishes available
Food-Grade Safety: Suitable for food packaging with certified materials
Global Supply Capability: Fast delivery and stable supply to Asia, Europe, and South America
OEM & Branding Support: Ideal for printed cans and customized packaging solutions
Looking for a trusted tinplate coil supplier in China? Hengze delivers both quality and value.
Available Steel Grades
Hengze Steel’s Electrolytic Tinplate Coils (ETP / SPTE) are manufactured in strict accordance with international standards, including JIS G3303 (Japan), ASTM A623M (USA), and GB/T 2520-2008 (China). We offer a wide range of steel base grades to meet different forming, corrosion resistance, and surface finish requirements for metal packaging applications.
| Temper Grade | HR30‑T Target | Yield Strength (MPa) |
|---|---|---|
| T‑1 | ~49 ±3 | ≥210 |
| T‑2 | ~53 ±3 | ≥260 |
| T‑2.5 | ~55 ±3 | — |
| T‑3 | ~57 ±3 | ≥305 |
| T‑4 | ~61 ±3 | ≥350 |
| T‑5 | ~65 ±3 | ≥415 |
| DR‑8 | ~72 | ≥550 |
| DR‑9 | ~75 | ≥620 |
| DR‑9M | ~76 | ≥660 |
| DR‑10 | ~79 | ≥690 |
| Temper Grade | HR30‑T (Rockwell) | Approx. Proof Stress (MPa) |
|---|---|---|
| T‑1 | 45–53 | — |
| T‑2 | 49–57 | — |
| T‑3 | 53–61 | — |
| T‑4 | 57–65 | — |
| DR‑8 | ≥70 | ≥550 |
| Temper Grade | Hardness Description | Yield Strength (MPa) |
|---|---|---|
| T‑1 | Soft, high elongation | — |
| T‑2 | Moderate strength | — |
| T‑3 | Medium strength | — |
| T‑4 | Rigid | — |
| T‑5 | Very rigid | — |
| DR‑8 | High tensile strength | — |
Frequently Asked Questions (FAQ)
Tinplate Coil, also known as Electrolytic Tinplate (ETP or SPTE), is a cold-rolled, low-carbon steel coil uniformly coated on both sides with a high-purity tin layer through advanced electroplating technology. It combines the mechanical strength of steel with excellent corrosion resistance, superior solderability, and an attractive surface finish, making it ideal for food packaging, beverage cans, and industrial containers.
Tinplate Coils are produced in a range of temper grades, including T1, T2, T2.5, T3, T4, T5, DR7, DR8, DR9, DR9M, and DR10. These grades correspond to different hardness and strength levels, tailored to specific forming, deep drawing, and stamping requirements in packaging and closure applications.
Standard tin coating weights range from 1.1/1.1 g/m² up to 8.4/8.4 g/m², including differential coatings such as 2.8/5.6 g/m² or 5.6/8.4 g/m². Thickness options typically span from 0.12 mm to 0.60 mm, customizable to meet diverse industrial and packaging needs.
The price of Tinplate Coils varies based on multiple factors, including steel base grade, tin coating weight, temper grade, coil dimensions, order volume, and delivery terms. Typical FOB prices range between US$750 to US$780 per metric ton for standard MR or SPCC base steel with medium tin coating weights (e.g., 2.8/2.8 g/m²) and temper grades from T2 to T4. For precise quotations, contact Hengze Steel’s sales team.
Tinplate Coils are widely used in:
Food and beverage packaging: cans, pails, and containers
Closures and lids: easy-open ends (EOE), crown caps, and twist-off caps
Aerosol and chemical containers: paint pails, spray cans
Decorative packaging: suitable for lithographic printing and lacquering due to excellent surface quality
Their combination of corrosion resistance, high formability, and excellent printability makes them indispensable in metal packaging industries.
Get a Quote Today
At Hengze Steel, we specialize in supplying high-quality Tinplate Coils (ETP / SPTE) engineered for superior corrosion resistance, excellent formability, and outstanding surface finish.
Whether you need detailed product specifications, a competitive quote, or expert technical support, our experienced team is ready to provide reliable and customized tinplate solutions tailored to your specific packaging and industrial applications.
👉 Or email us at sales@hengzesteel.com.
