Corrugated Roofing Sheets
Explore Hengze Steelβs Wide Range of Galvanized, Galvalume, Aluminum, and Stainless Steel Corrugated Roofing Solutions Designed for Long-Lasting Performance
Corrugated Roofing Sheet Manufacturer β Hengze Steel
Hengze Steel is a trusted manufacturer and global supplier of high-quality corrugated roofing sheets, engineered for superior performance in diverse construction environments. Our corrugated metal panels are manufactured using advanced roll-forming technology and premium-grade raw materials including galvanized steel, galvalume, aluminum, and stainless steel.
Whether you need roofing for residential homes, agricultural buildings, warehouses, or commercial projects, Hengze corrugated roofing sheets deliver long-term durability, corrosion resistance, and exceptional structural integrity β all while being cost-effective and easy to install.
Key FeaturesοΌ
- Superior Corrosion Resistance: The electrolytic tin layer protects the steel base from moisture, oxygen, and chemical agents, ensuring long-term durability.
- Diverse Surface Finishes: Available in Bright, Stone, Silver, and Matte. Enhanced with passivation and food-grade DOS oiling to support long shelf life and excellent printability.
- Wide Temper Range: Covers T1βT5 and DR7βDR9 to meet various forming and stamping requirements.
- Customizable Tin Coating Weights: From 1.1/1.1 to 8.4/8.4 g/mΒ². Differential and mixed coatings (e.g., 2.8/5.6) are also available.
| Parameter | Specification | Description |
|---|---|---|
| Base Material | Galvanized Steel, Galvalume, Aluminum, Stainless Steel | High-strength, anti-corrosion substrates |
| Thickness | 0.18 β 4mm | Customizable according to project requirements |
| Total Width | 750 β 1500 mm | Panel width before installation |
| Corrugation Height | 18 β 30 mm | Enhances rigidity and water-shedding performance |
| Zinc/Al-Zn Coating | Z40 β Z275g/mΒ² / AZ30 β AZ150g/mΒ² | Improves anti-rust and anti-corrosion life span |
| Paint Coating System | PE, SMP, PVDF (Top: 15β25ΞΌm / Back: 5β10ΞΌm) | Long-lasting color and UV protection |
Corrugated Roofing Sheet Material (Optional)

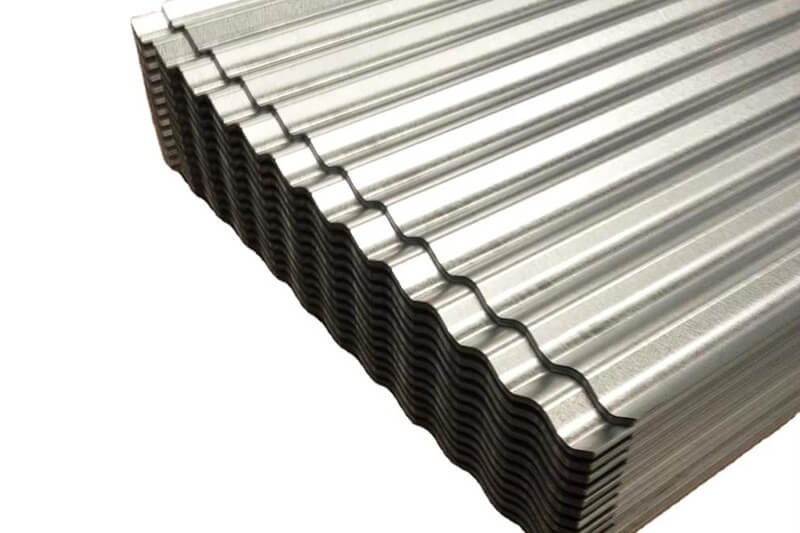

Galvanized Steel (GI)
Zinc-coated steel via hot-dip or electro-galvanizing. Delivers good corrosion resistance, solid structural strength, and cost efficiency, widely used for industrial, residential, and agricultural roofing projects.

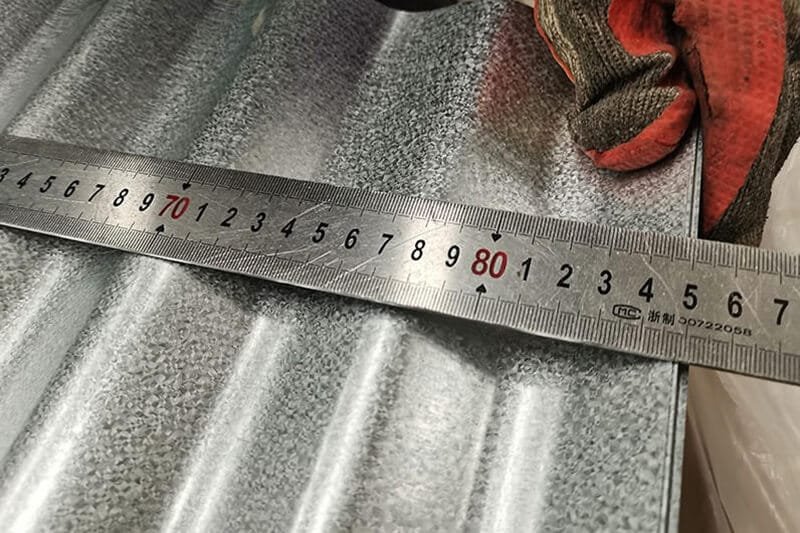

Galvalume Steel (GL)
Steel sheets coated with ~55β―% aluminum, ~43β―% zinc alloy. Offers superior corrosion resistance, heat reflectivity, and long service life. Ideal for coastal zones and high-temperature roofing environments.

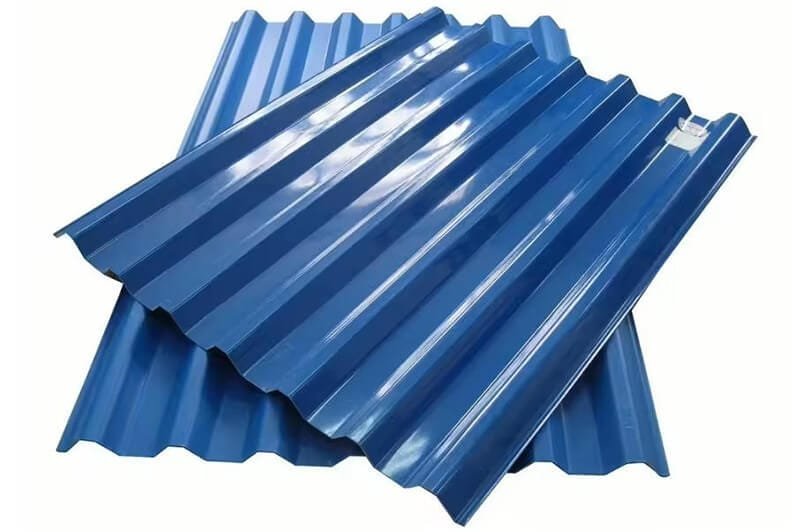

PPGI Roofing Sheets
Zinc-coated steel pre-painted with PE, SMP or PVDF layers. Combines aesthetic variety with corrosion and weather resistance. Common in construction facades, appliance panels, and general roofing.

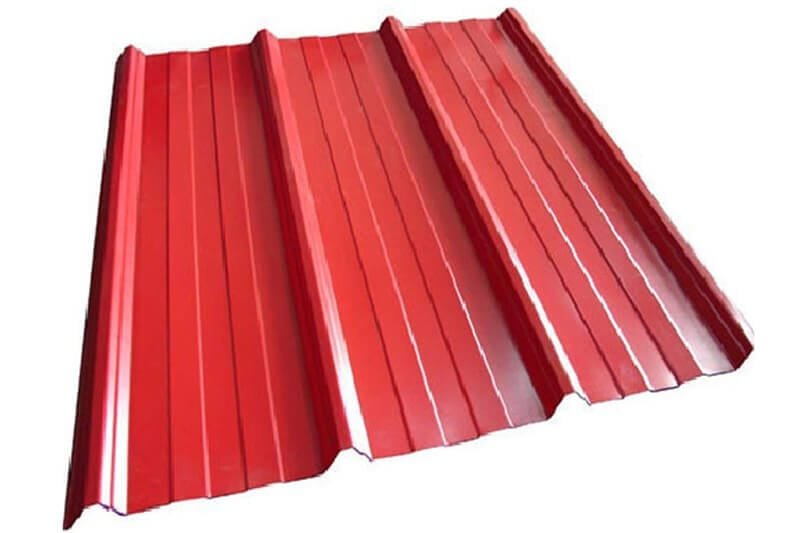

PPGL Roofing Sheets
AlβZn alloy substrate with painted PE/SMP/PVDF finish. Delivers enhanced durability, UV resistance, and color retention in harsh conditions. Frequently chosen for architectural roofing and cladding.

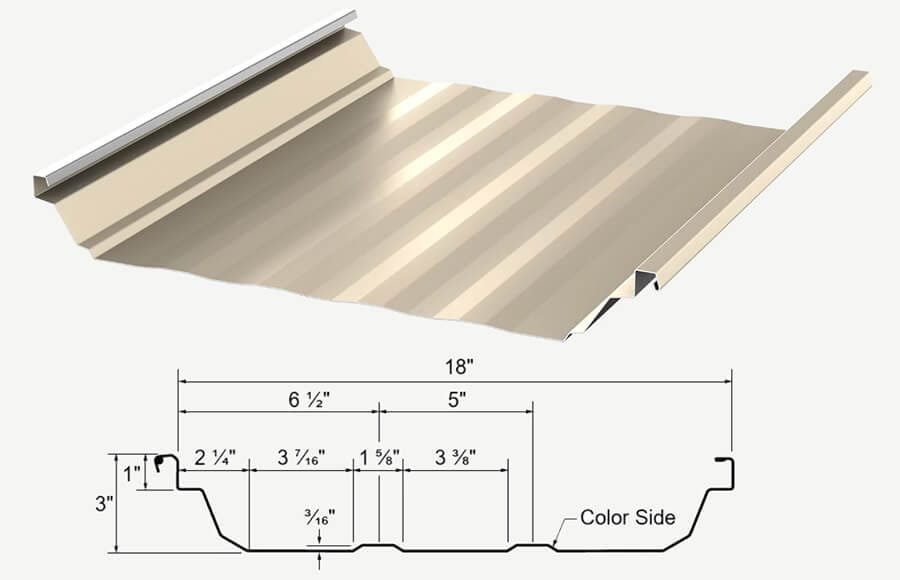

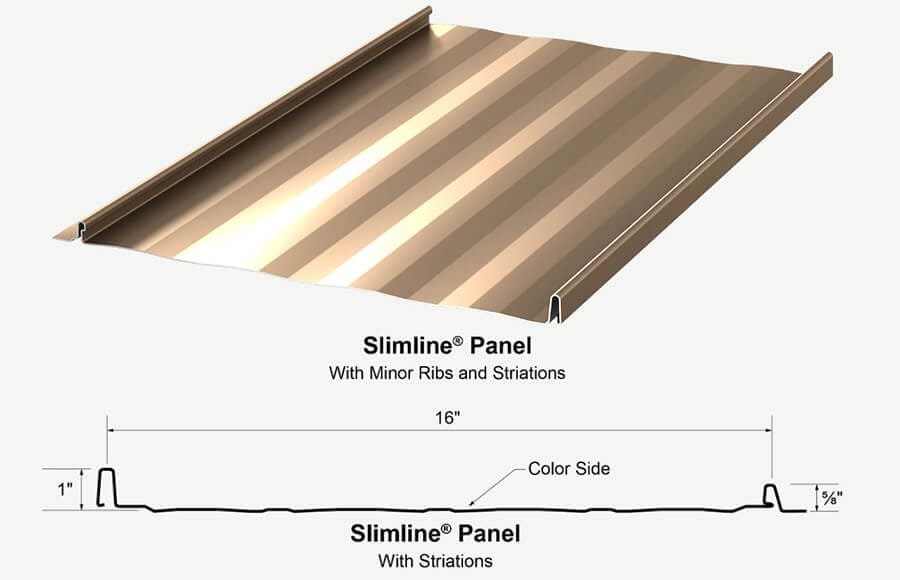

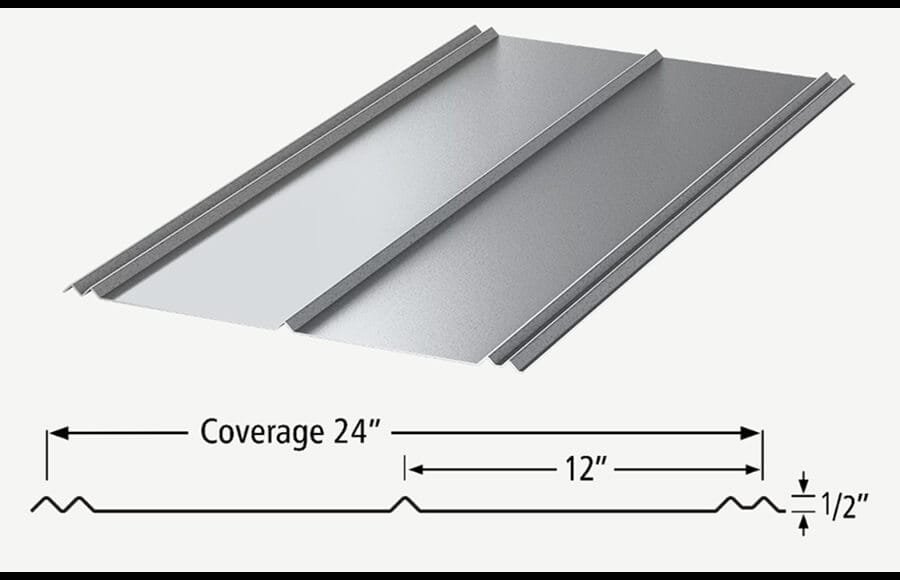

Customizable Corrugation Designs (Optional)
Corrugation designs can be customized based on your specifications. The following are standard profiles that can be modified to suit different applications.
Standard and Custom Colors Available (Optional)
We customize colors based on your samples to meet exact requirements. Below are common options that can be tailored to your needs.
RAL1013>>
RAL1015>>
RAL1021>>
RAL2005>>
RAL3005>>
RAL3013>>
RAL5010>>
RAL5012>>
RAL5015>>
RAL5017>>
RAL6005>>
RAL6018>>
RAL7033>>
RAL7011>>
RAL7035>>
RAL8004>>
RAL8014>>
RAL8017>>
RAL9002>>
RAL9003>>
RAL9006>>
RAL9010>>
RAL9011>>
Why Choose Hengze Corrugated Roofing Sheets?
β Exceptional Durability
Manufactured from premium galvanized and galvalume steel, our roofing sheets offer over 40 years of reliable performance, even in harsh climates.
β High Load-Bearing Strength
The corrugated design improves structural rigidity and evenly distributes weight β suitable for both low-slope and steep-pitch roofs.
β Corrosion & UV Protection
Advanced PVDF and SMP coatings provide excellent resistance to rust, chemicals, and UV rays, making them ideal for coastal, industrial, or tropical environments.
β Lightweight & Easy to Install
Engineered for quick installation, Hengze roofing sheets reduce labor time and lower structural load requirements.
β Energy Efficient & Eco-Friendly
Reflective surfaces reduce heat absorption and cooling costs. Fully recyclable materials support green building practices.
β Low Maintenance
Designed for long-term use with minimal upkeep β just occasional cleaning is enough to maintain optimal performance.
Global Projects Showcase

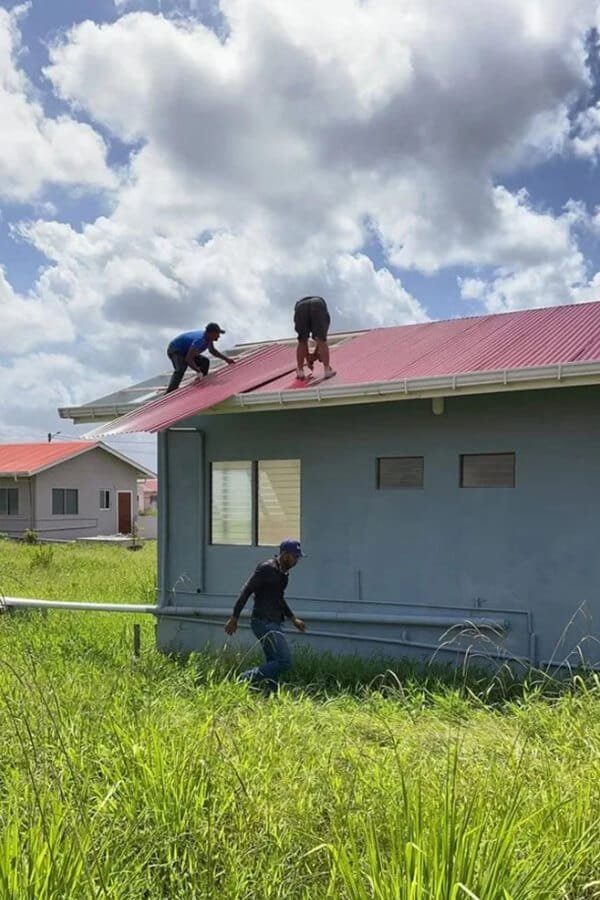

Hengze's roof panels used in Africa

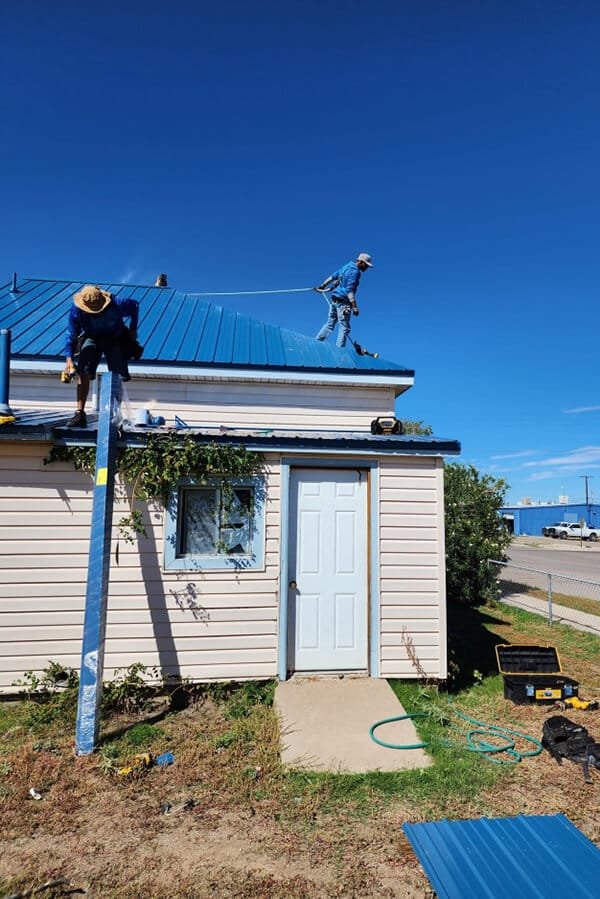

Hengze's roof panels used in Brazil

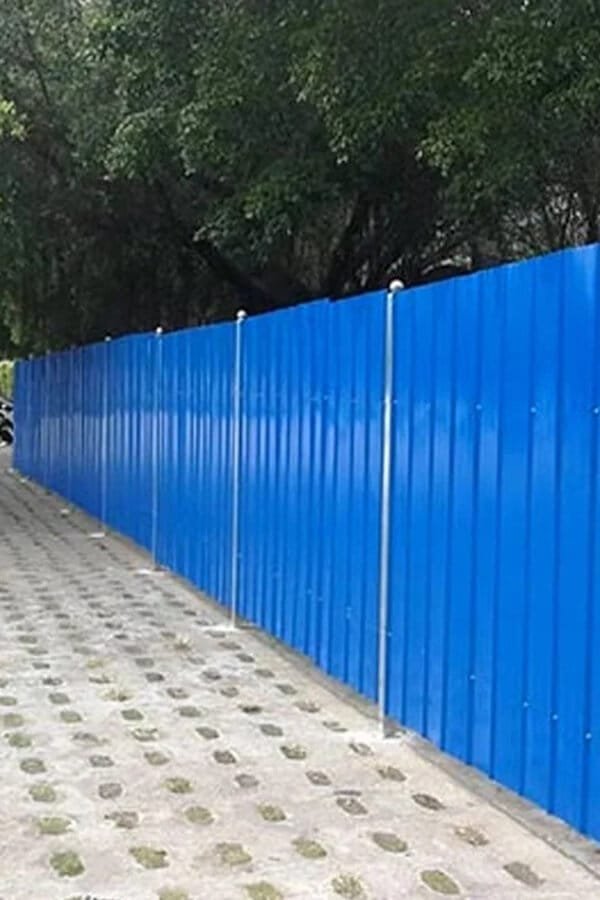

Hengze's roof panels used in China

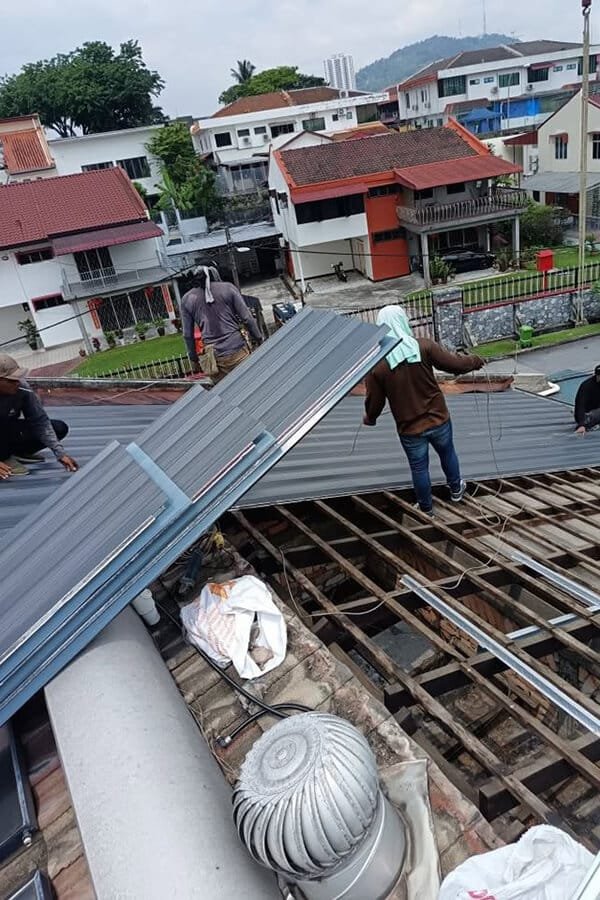

Hengze's roof panels used in Indonesia

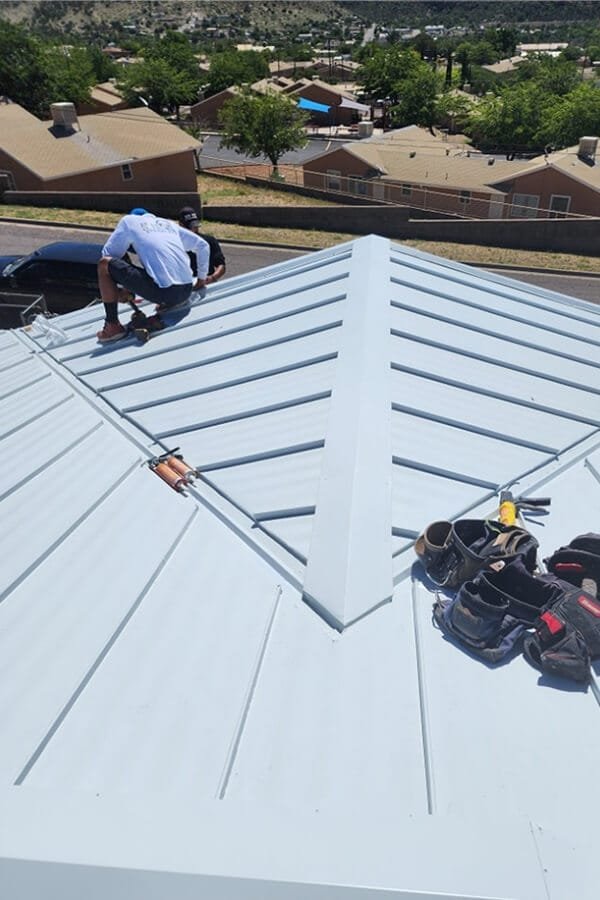

Hengze's roof panels used in New Zealand

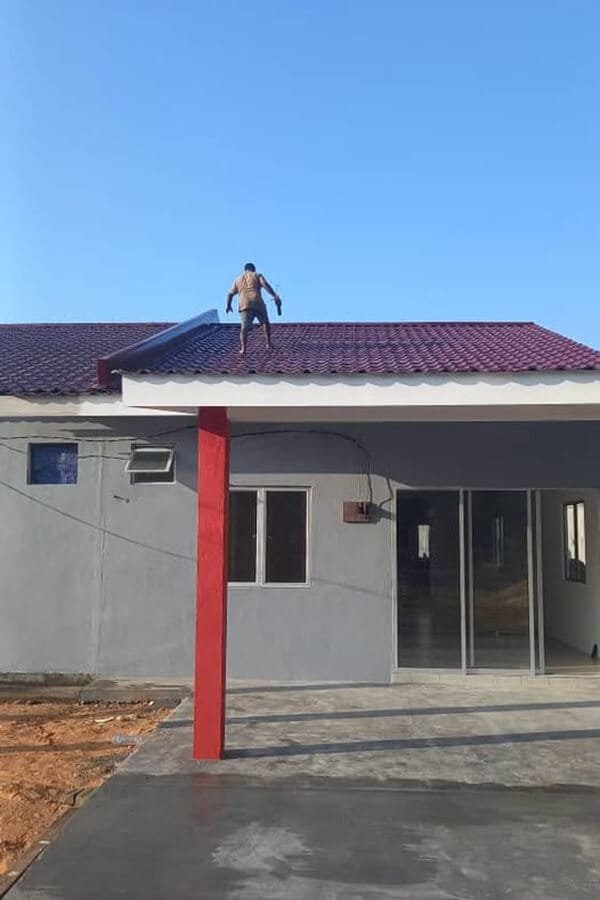

Hengze's roof panels used in Pakistan.

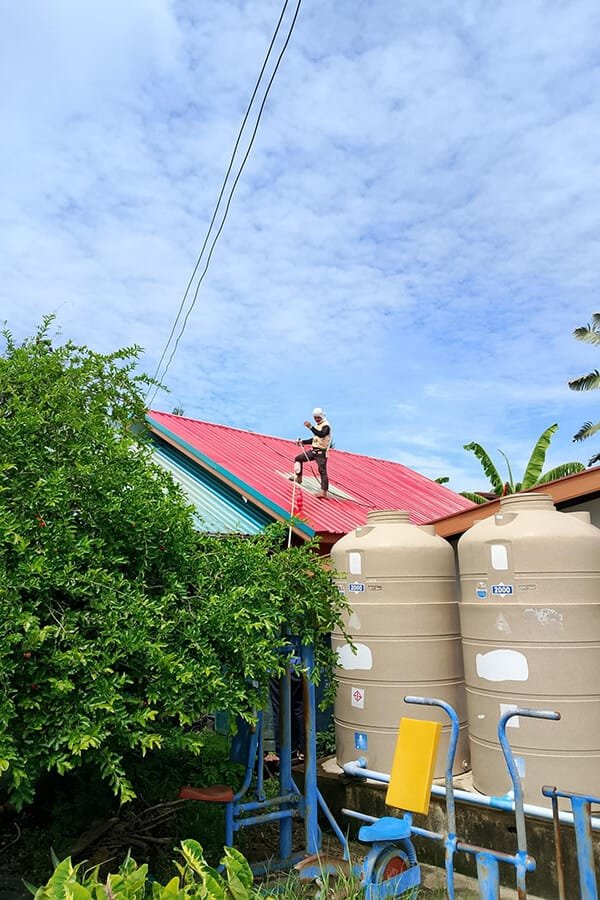

Hengze's roof panels used in Thailand

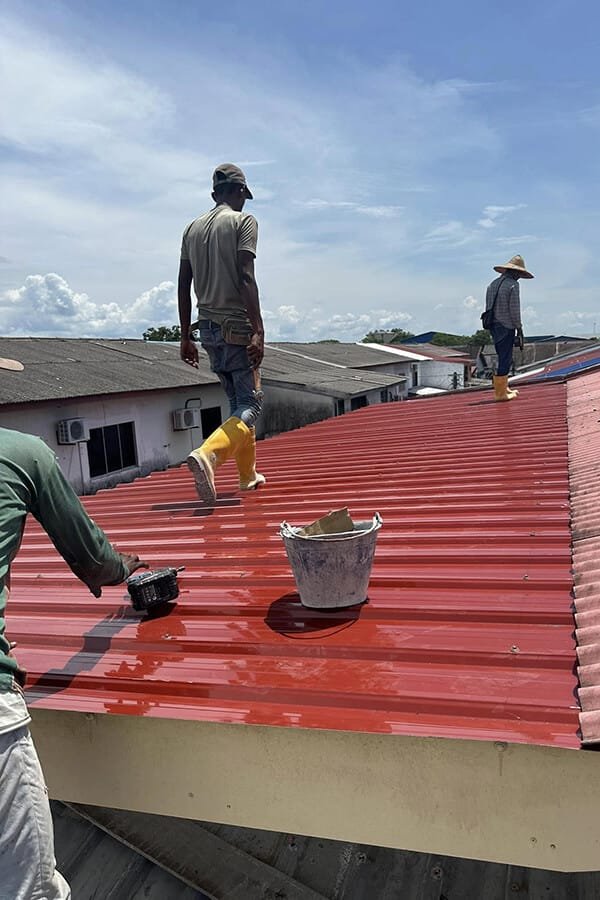

Hengze's roof panels used in Venezuela

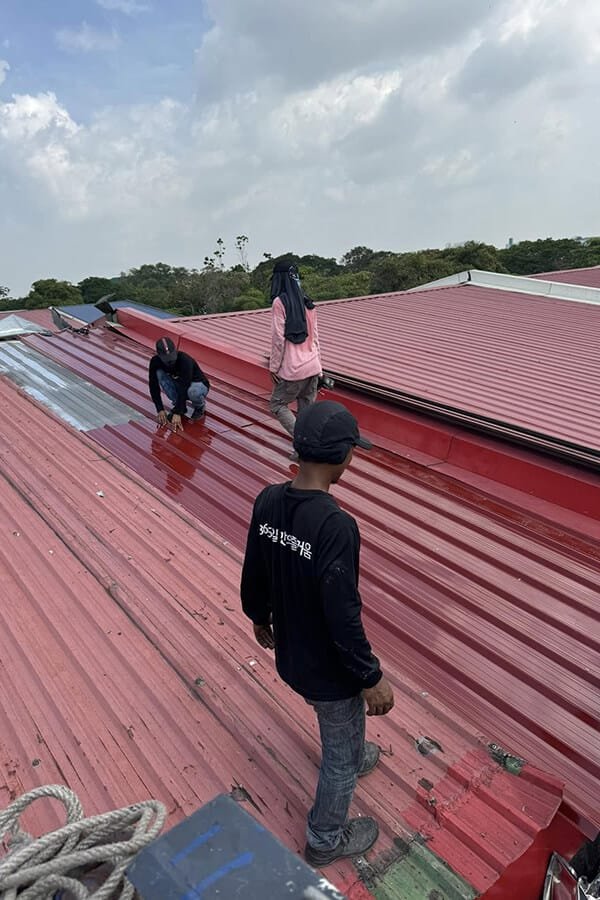

Hengze's roof panels used in Argentina
Available Steel Grades
Hengze Steelβs Corrugated Roofing Steel Sheets are manufactured in strict accordance with international standards, including EN 10346 (EU), JIS G3302 (Japan), ASTM A653/A792 (USA), and GB/T 2518 (China). We offer a wide range of steel grades to meet diverse strength, corrosion resistance, and surface finish requirements for roofing and construction applications.
| Parameter | Specification | Description |
|---|---|---|
| Standard | EN 10346:2015 | Continuous hot-dip galvanized and galvalume steel sheets |
| Steel Grades | DX51D+Z275, DX52D, S250GD | Low-carbon cold-rolled steel with zinc coating |
| Coating Type | Hot-dip galvanized (Zinc), Galvalume (Al-Zn alloy) | Provides corrosion and heat resistance |
| Coating Weight | Zinc: Z100βZ275 g/mΒ²; Galvalume: AZ50βAZ150 g/mΒ² | Heavier coating means better protection |
| Thickness Range | 0.12 mm β 3.0 mm | Suitable for various construction needs |
| Yield Strength | 250 β 350 MPa | Ensures structural strength |
| Tensile Strength | 300 β 500 MPa | Maximum load capacity |
| Surface Treatment | PE, SMP, PVDF coatings | Enhances weather resistance and appearance |
| Application | Residential, industrial, coastal, and harsh environments | Wide usage in various climates |
| Certifications | CE, ISO 9001, ISO 14001 | Quality and environmental standards compliance |
| Parameter | Specification | Description |
|---|---|---|
| Standard | JIS G 3302 (Galvanized Steel), JIS G 3312 (Galvalume Steel) | Japanese metal coating steel standards |
| Steel Grades | SPCC (cold-rolled), SPHC (hot-rolled) | Common steel grades for construction |
| Coating Type | Electro-galvanized, hot-dip galvanized, galvalume | Multiple coatings for corrosion protection |
| Coating Thickness | Zinc: Z12ΞΌm, Z18ΞΌm | Coating thickness in microns (ΞΌm) |
| Thickness Range | 0.15 mm β 3.0 mm | Applicable to many building needs |
| Yield Strength | 180 β 340 MPa | Meets structural safety requirements |
| Tensile Strength | 300 β 460 MPa | Provides load-bearing capacity |
| Surface Treatment | PE coating, PVDF coating | Improves durability and aesthetics |
| Application | Industrial buildings, residential, coastal regions | Suitable for humid and marine climates |
| Certifications | JIS, ISO 9001 | Certified quality assurance |
| Parameter | Specification | Description |
|---|---|---|
| Standard | GB/T 2518-2019 | Chinese galvanized steel and steel strip standard |
| Steel Grades | Q195, Q215, Q235 | Common carbon structural steels for construction |
| Coating Type | Hot-dip galvanized, galvalume | Provides corrosion and weather resistance |
| Coating Weight | Zinc: Z30, Z60, Z90 g/mΒ²; Galvalume: AZ50, AZ150 g/mΒ² | Coating thickness influences corrosion resistance |
| Thickness Range | 0.14 mm β 3.0 mm | Meets various structural requirements |
| Yield Strength | 195 β 345 MPa | Ensures structural safety |
| Tensile Strength | 270 β 500 MPa | Supports load capacity |
| Surface Treatment | PE, SMP, PVDF coatings | Multiple coating options for durability and color |
| Application | Industrial, residential, agricultural, coastal areas | Suitable for diverse climates and uses |
| Certifications | CCC, ISO 9001 | National and international quality compliance |
Frequently Asked Questions (FAQ)
Consider factors like climate, budget, and desired lifespan. Galvalume offers superior corrosion resistance, aluminum is lightweight and rust-proof, while galvanized steel balances cost and durability.
Standard orders are usually processed and shipped within 15-30 days, depending on quantity and customization requirements.
Thicker sheets provide higher strength and longer lifespan but may increase cost and weight. Choose thickness based on structural needs and environmental conditions.
Yes, we offer a wide range of customizable lengths, widths, coatings, and colors to meet specific project requirements.
We provide high-quality corrugated roofing sheets at competitive prices by optimizing production efficiency and sourcing premium materials, ensuring excellent value for money.
