How is Color Coated Steel Coil Manufactured?

Color coated steel coil, also known as prepainted steel coil or coil coated steel, refers to steel sheets that are coated with organic paint before forming and fabrication. This process, widely known as coil coating, follows the principle “Finish first, fabricate later,” ensuring uniform color, superior durability, and cost efficiency.

Compared to post-painting methods, prepainted steel coils (PPGI / PPGL) offer higher consistency, enhanced corrosion resistance, energy savings, and environmental benefits.

At Hengze Steel, we specialize in manufacturing high-quality color coated steel coils with advanced production lines, strict quality control, and customized solutions to meet global construction, automotive, and appliance industry needs.

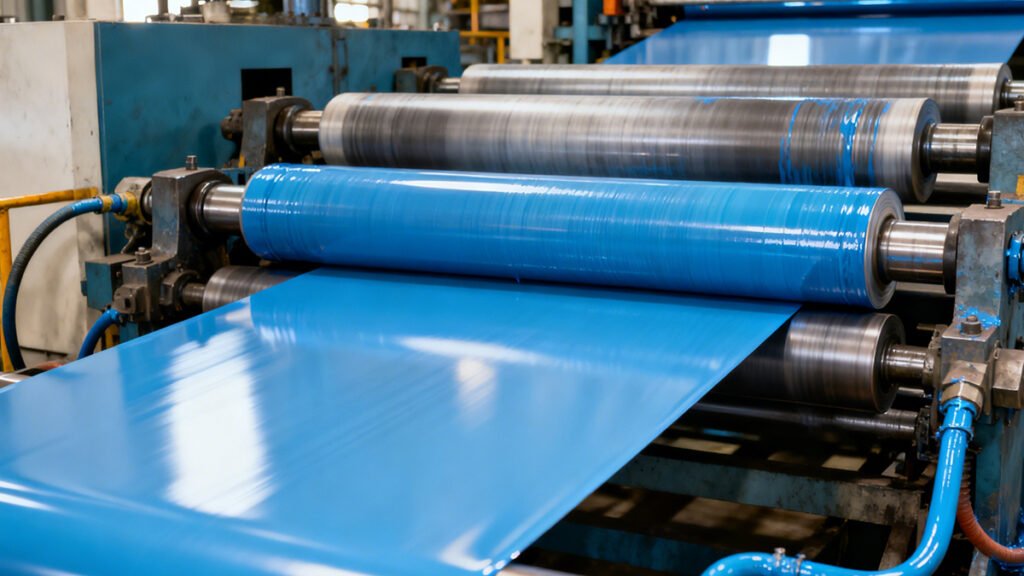

Manufacturing coated steel coils

Table of Contents

1. What Is Color Coated Steel Coil? (Definitions & Substrates)

1.1 Definitions

  • Prepainted Steel Coil / Coil Coated Steel: Steel that has been coated and cured in coil form before fabrication.

  • PPGI / PPGL: Prepainted Galvanized Iron (PPGI) or Prepainted Galvalume (PPGL), depending on whether hot-dip galvanized or Al-Zn alloy coated steel is used as the substrate.

  • Color Coated Steel Coil: General industry term highlighting the decorative and protective coating layer.

1.2 Common Substrates

The substrate is critical for adhesion, durability, and corrosion resistance. Common options include:

Hengze Steel provides custom substrate solutions depending on project requirements, ensuring both mechanical strength and coating performance.

2. Advantages & Key Applications

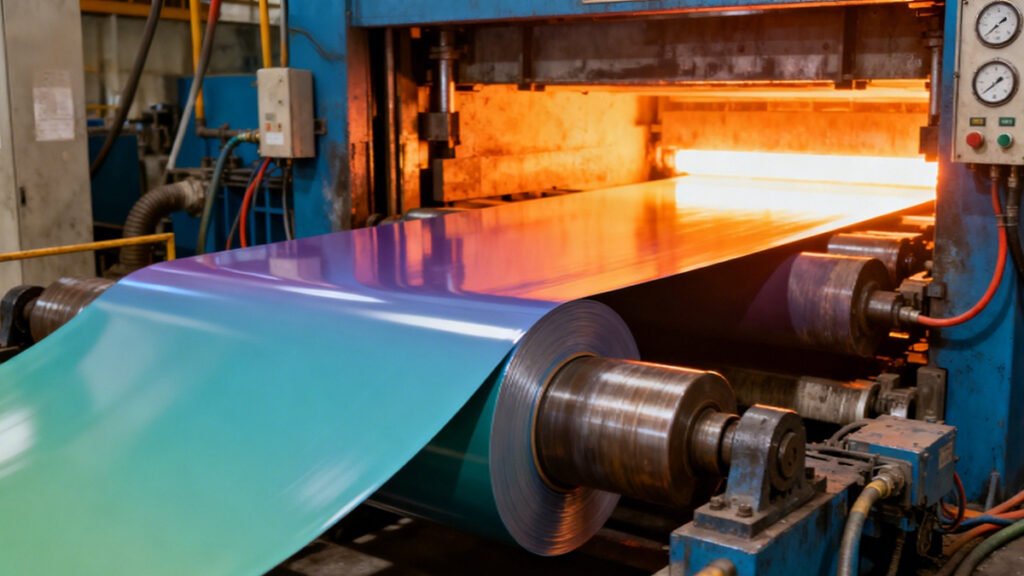

Manufacturing coated steel coils1

2.1 Advantages

  • Consistent and uniform coating quality

  • High production efficiency and reduced rework rates

  • Cost-effective for large-scale projects

  • Enhanced durability and corrosion resistance

  • Environmentally friendly (low VOC, reduced waste)

  • Easy to process—suitable for bending, punching, and cutting

2.2 Applications

  • Construction: Roofing, wall cladding, ceiling panels, facades

  • Home Appliances: Refrigerator panels, washing machines, ovens

  • Interior & Exterior Decoration: Ceiling tiles, decorative trims

  • Office Furniture & Storage Units

  • Transportation: Automotive panels, trailers, containers

  • Signage & Advertising Boards

3. Overview: Manufacturing Flow

The manufacturing process of color coated steel coil involves several stages on a continuous coil coating line:

  1. Base coil preparation

  2. Cleaning and degreasing

  3. Chemical pretreatment (conversion coating)

  4. Primer coating

  5. Primer curing and cooling

  6. Topcoat (finish coat) application

  7. Final curing and cooling

  8. Quality inspection and rewinding

4. Detailed Manufacturing Steps

4.1 Raw Material Selection & Base Coil Preparation

  • Substrates such as cold rolled, galvanized, or galvalume steel are selected based on final application.

  • The coil is uncoiled and spliced to ensure continuous operation.

  • Initial leveling and defect checks are performed.

4.2 Surface Cleaning & Degreasing

  • Removes oil, grease, oxides, and dust.

  • Methods: alkaline cleaning, brushing, rinsing, and water washing.

4.3 Chemical Pretreatment / Conversion Coating

  • Enhances adhesion and corrosion resistance.

  • Common treatments: phosphate, chromate-free conversion coatings, or silane systems.

4.4 Primer Application

  • Roller coating applies primer on both sides.

  • Ensures adhesion and improves anti-corrosion performance.

4.5 Primer Curing & Cooling

  • Curing ovens bake primer at controlled temperatures.

  • Cooling stabilizes the coating for further processing.

4.6 Topcoat (Finish Coat) Application

  • The decorative and protective layer, applied via roller coating.

  • Types: Polyester, SMP, PVDF, Epoxy, PU, Plastisol, Laminate Films.

4.7 Final Curing, Cooling & Quenching

  • High-temperature ovens cure the topcoat.

  • Cooling ensures hardness, durability, and stable coating performance.

4.8 Inspection, Testing & Rewinding

  • Tests: coating thickness, adhesion, bend test, salt spray resistance, gloss, and color uniformity.

  • Defective sections are cut out before rewinding and packaging.

5. Key Factors, Challenges & Quality Control

  • Line speed & tension control: Prevents thickness variation.

  • Coating viscosity & temperature: Ensures smooth finish.

  • Curing temperature & time: Determines cross-linking and durability.

  • Dust control & cleanliness: Avoids pinholes and surface defects.

  • Coating thickness monitoring: Guarantees performance uniformity.

Hengze Steel applies strict in-line inspection and advanced testing methods to deliver consistent, defect-free coils for global customers.

6. Common Types of Coatings & Materials

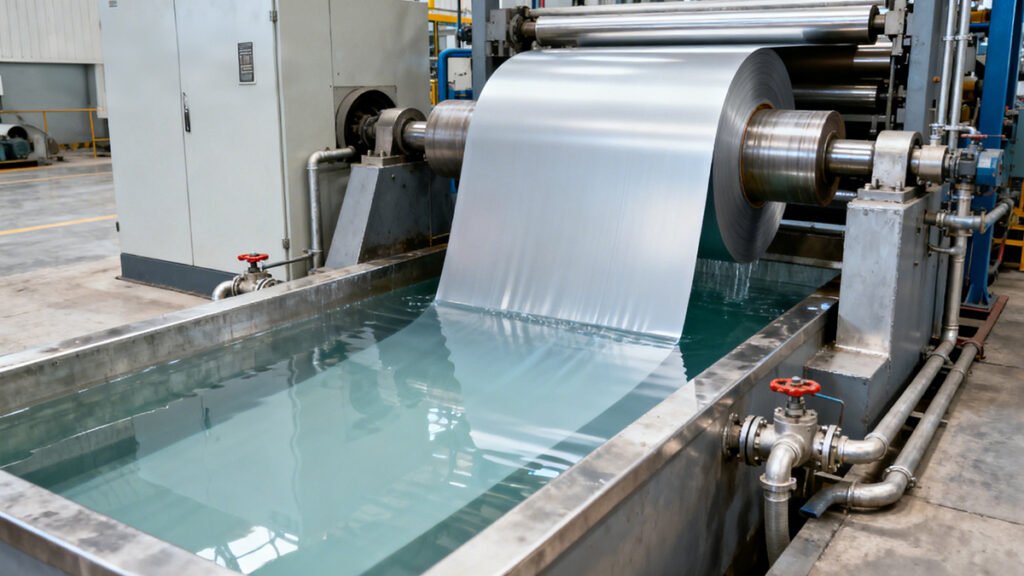

Manufacturing coated steel coils2
Coating TypeFeaturesApplications
Polyester (PE)Cost-effective, wide color rangeRoofing, wall panels
Silicone-Modified Polyester (SMP)Improved durabilityExterior cladding
PVDF (Fluorocarbon)Superior UV & weather resistanceHigh-end facades
EpoxyExcellent adhesion, corrosion resistanceBase layers, appliances
Polyurethane (PU)Abrasion and chemical resistanceHarsh environments
Plastisol / PVCThick coating, scratch resistanceRoofing tiles, shutters
Laminate FilmsDecorative, anti-scratchPremium appliances, interiors

7. Environmental & Efficiency Considerations

Modern coil coating emphasizes sustainability:

  • Low VOC paints and eco-friendly pretreatments

  • Heat recovery systems to save energy

  • Waste recycling and water treatment

  • Automation & smart control for efficiency

Hengze Steel continuously upgrades its production lines to meet green manufacturing standards, ensuring both product quality and environmental responsibility.

8. Conclusion & Call-to-Action

In summary, the manufacturing of color coated steel coils is a highly automated, precision-controlled process involving cleaning, pretreatment, primer coating, finish coating, curing, and strict quality inspection. Mastery of these steps ensures high performance, durability, and consistent aesthetics.

At Hengze Steel, we are committed to producing premium PPGI and PPGL coils with advanced technology, superior coating systems, and customizable solutions. Whether for construction, appliances, or industrial use, Hengze Steel delivers reliable quality and competitive pricing.

👉 Contact Hengze Steel today for customized color coated steel coil solutions, technical support, and free samples to boost your projects.
