Steel Sheet vs. Plate: What’s the Difference

When selecting steel materials, the terms “steel sheet” and “steel plate” are often used interchangeably, but they have distinct differences. Although both belong to the flat steel category, they differ significantly in thickness, manufacturing process, mechanical properties, and applications.

This professional guide from Hengze Steel explores the key differences between steel sheet vs. steel plate and provides critical factors to consider in engineering design, fabrication, and procurement.

Steel Sheet vs Plate3

Table of Contents

1. Definition & Thickness Standards

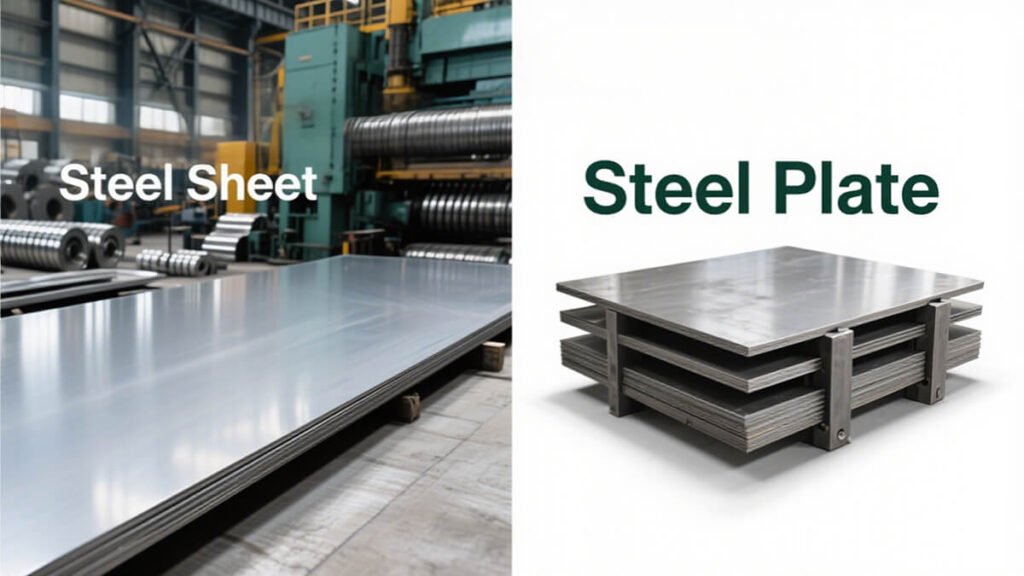

Steel Sheet vs Plate
Name Typical Thickness Range / Standard Measurement Units (Gauge / mm / inch)
Steel Sheet Generally less than 6 mm (≈0.25 inch / 1/4 inch) Measured in gauge or millimeters. The U.S. typically uses gauge; Europe and Asia commonly use mm.
Steel Plate Usually ≥6 mm. Some standards set the lower limit at 0.187 inch (≈4.75 mm) or adjust based on application Measured in mm or inch. Gauge is rarely used for plates because it lacks precision for thicker material.

Note: Thickness standards vary by country and industry. In some cases, plate may start at 5 mm or 8 mm, while sheet upper limits may be adjusted. The definition depends on steel grade, intended use (e.g., structural, pressure vessel, automotive panels), and standards such as ASTM, EN, or JIS.

2. Production Process & Surface Finish

Item Steel Sheet Steel Plate
Rolling & Forming Available in hot-rolled and cold-rolled forms. Cold-rolled sheet is ideal when smooth surface and tight tolerances are required. Primarily hot-rolled, often followed by heat treatment, quenching, and tempering to enhance strength and toughness.
Surface Finish Common finishes include galvanizing, polishing, brushing, painting, and anti-corrosion coatings. Thin material makes surface quality more critical. May include plasma, laser, or waterjet cutting, rust-preventive coatings, or surface hardening for abrasion resistance. Appearance requirements are generally less strict because structural performance takes priority.

3. Mechanical Properties & Strength

  • Strength (Tensile & Yield):
    Steel plate is typically used in heavy-load structures, pressure vessels, bridges, and shipbuilding, where high yield strength and toughness are critical.
    Steel sheet is more common for enclosures, decorative panels, and light-duty applications where formability and surface finish are more important than extreme strength.

  • Formability:
    Sheet is easier to stamp, bend, and draw, making it ideal for complex shapes.
    Plate’s greater thickness makes forming more difficult and costly.

  • Toughness & Fracture Behavior:
    Plate used in low-temperature or impact-prone environments often requires additional testing (e.g., Charpy impact test) to verify toughness. Sheet is generally used at ambient conditions with lower impact demands.

4. Typical Applications

Steel Sheet vs Plate1
IndustrySteel Sheet UsesSteel Plate Uses
AutomotiveBody panels, interior trim, floor coverings, decorative parts.Heavy-duty chassis components, crash-safety structures, engine hood reinforcements.
Construction / CladdingRoofing, interior/exterior wall cladding, ceiling panels, curtain walls.Structural beams and slabs, foundation plates, load-bearing walls, bridge decks, dam facing.
Shipbuilding / MarineLightweight cabin linings, interior covers.Hull plates, decks, bulkheads, heavy structural sections requiring pressure and impact resistance.
Pressure Vessels / Tanks / PipesThin liners, fittings, heads.Boiler plate, thick-walled piping, pressure vessel shells, heavy flanges.
General FabricationAppliance housings, packaging, electronic enclosures, furniture, signage.Heavy machinery bases, bridge frameworks, cutting blades, mold bases.

5. Cost, Weight & Fabrication Factors

  • Weight: Plate has a higher unit weight, increasing transportation, handling, and installation costs.

  • Processing Cost: Thicker material requires more powerful cutting, bending, and welding equipment, raising fabrication expenses.

  • Material Cost: Plate consumes more raw material and often needs higher-grade steel or additional heat treatment, increasing overall cost.

  • Waste & Scrap: Cutting thicker plate can generate more waste and edge-processing costs.

6. Standard Grades & SEO Long-Tail Keywords

  1. Assess Load & Environment

    • Static/dynamic/impact loads

    • Exposure to corrosion, high/low temperature, or marine environments

    • Requirements for wear resistance, crack resistance, or impact toughness

  2. Determine Thickness & Standards

    • Follow design codes, structural strength, and safety factors

    • Check relevant standards (ASTM, EN, JIS, BS)

  3. Consider Processing & Fabrication Costs

    • Sheet is more economical for stamping, bending, and complex forming

    • Plate entails higher cutting, welding, and handling costs

  4. Evaluate Surface & Appearance Needs

    • Is a smooth finish required?

    • Will galvanizing, painting, or special coatings be applied?

  5. Compare Total Cost of Ownership

    • While plate has a higher upfront cost, its durability and reduced maintenance can provide better long-term value.

7. How to Choose: Sheet or Plate

  1. Assess Load & Environment

    • Static/dynamic/impact loads

    • Exposure to corrosion, high/low temperature, or marine environments

    • Requirements for wear resistance, crack resistance, or impact toughness

  2. Determine Thickness & Standards

    • Follow design codes, structural strength, and safety factors

    • Check relevant standards (ASTM, EN, JIS, BS)

  3. Consider Processing & Fabrication Costs

    • Sheet is more economical for stamping, bending, and complex forming

    • Plate entails higher cutting, welding, and handling costs

  4. Evaluate Surface & Appearance Needs

    • Is a smooth finish required?

    • Will galvanizing, painting, or special coatings be applied?

  5. Compare Total Cost of Ownership

    • While plate has a higher upfront cost, its durability and reduced maintenance can provide better long-term value.

Conclusion

  • Core Difference: The primary distinction between steel sheet and steel plate is thickness, typically around 6 mm (≈0.187 inch) as the dividing line.

  • Broad Impact: Thickness affects not only weight but also strength, rigidity, formability, application range, and cost.

  • Demand-Driven Selection: Project requirements, standards, budget, and design objectives determine whether sheet or plate is the better choice.

Hengze Steel, a leading supplier of steel coils, sheets, and plates, delivers international-grade products and customized solutions for construction, shipbuilding, automotive, and pressure-vessel industries.

Choosing Hengze Steel means premium quality steel, expert technical support, and an optimized purchasing experience—backed by global standards and proven reliability.
